Detailed Description:

Experience the fascinating world of thermoelectric cooling with the powerful Peltier Plate Module - TEC1 12715 Thermoelectric Peltier Cooling Module. This versatile solid-state device leverages the Peltier effect to efficiently transfer heat, creating a distinct cold side and a hot side when a DC electric current is applied. It's an indispensable component for applications requiring precise temperature control, localized cooling, or even thermoelectric power generation, such as:

• Cooling electronic components (e.g., CPU, laser diodes, CCD cameras)
• Building mini-refrigerators or portable coolers
• Temperature stabilization in scientific instruments
• DIY beverage coolers/warmers
• Generating electricity from a temperature differential

The TEC1 12715 model signifies a high-performance Peltier module:

• "TEC" stands for Thermoelectric Cooler.
• "1" indicates it's a single-stage module.
• "127" refers to the number of P-N semiconductor couples (junctions) within the module, which are responsible for the heat transfer.
• "15" denotes its maximum current rating, typically 15 Amperes.

This module is designed to operate optimally around 12V DC (with a maximum voltage typically around 15.4V) and can achieve a significant temperature differential (ΔTmax) of up to 70°C between its hot and cold surfaces (under ideal conditions with no heat load on the cold side and efficient heat dissipation from the hot side). It's crucial to note that the hot side must be effectively cooled with a proper heatsink and fan to prevent thermal runaway and ensure efficient cooling on the cold side. Without adequate heat dissipation, the module will quickly reach thermal equilibrium and cease to cool.

With dimensions typically around 40mm x 40mm x 3.6mm, the TEC1 12715 is compact, solid-state (no moving parts), vibration-free, and virtually silent. Its robust design and high cooling capacity (Qmax typically ranging from 92W to 225W depending on conditions and specific manufacturer's rating) make it a popular choice for various thermal management challenges for enthusiasts and professionals in Pune, Maharashtra, India, and globally.

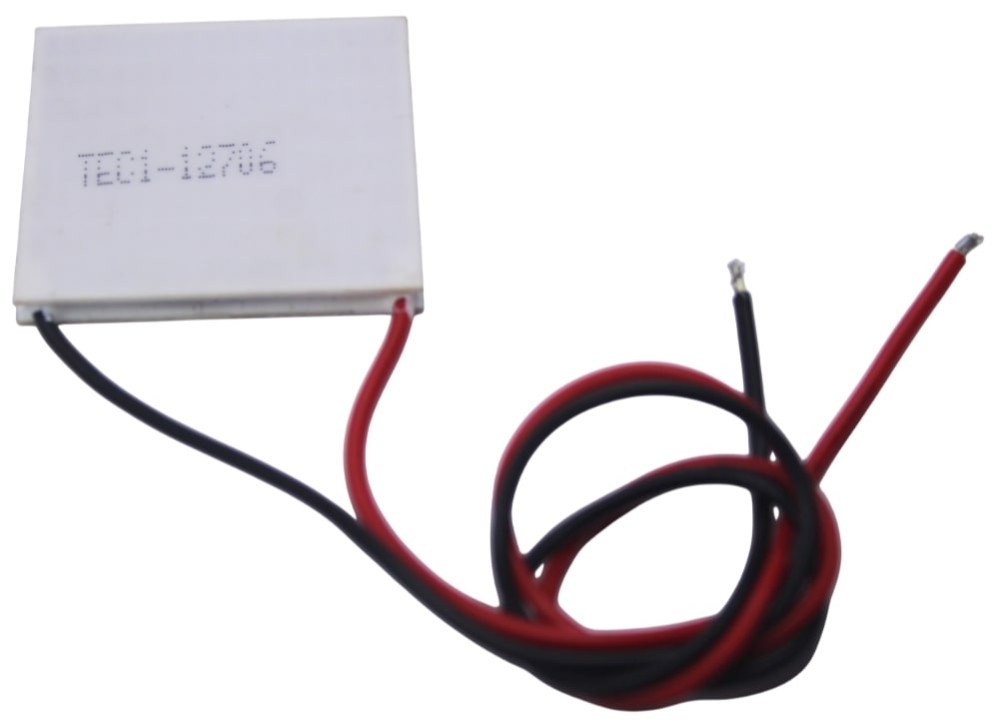

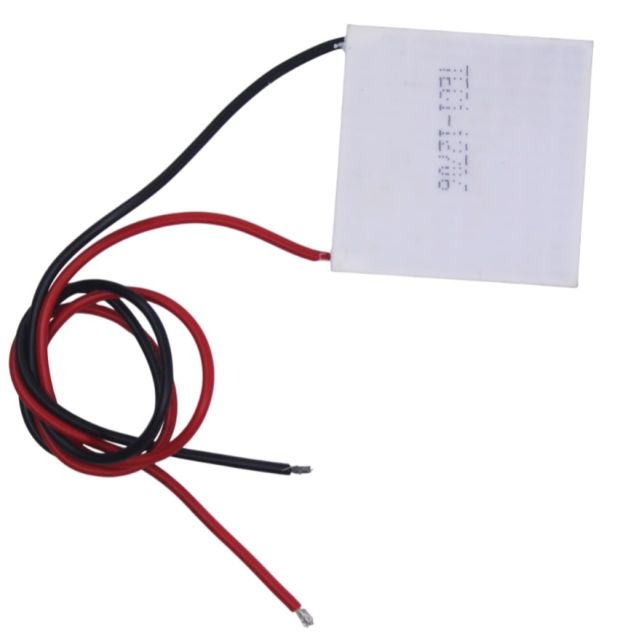

The TEC1-12706 Peltier Thermoelectric Cooler is a ceramic plate module that creates a temperature differential when supplied with DC power — one side becomes hot, and the other becomes cold. This module is ideal for solid-state cooling in compact and portable systems.

Used in miniature refrigeration systems, CPU coolers, electronics enclosures, and DIY incubators, the TEC1-12706 runs best at 12V and draws up to 6A, providing up to 60W of cooling power. It's compact, efficient, and can be controlled using a temperature sensor and relay or MOSFET circuit.

For best results, it must be used with a heatsink on the hot side to dissipate heat effectively.

Key Features:

• Thermoelectric Peltier module (TEC1-12706)

• Works on 12V DC up to 6A current

• Solid-state – no moving parts, noise-free operation

• Generates a temperature differential up to 60°C

• Durable ceramic plates with epoxy sealing

• Compact and lightweight – easy to integrate

• Requires heatsink/fan on hot side for efficient operation

• Suitable for electronics cooling, DIY chillers, and lab experiments

Technical Specifications:

How to Use:

1. Attach the cold side to the item you want to cool (e.g., CPU, aluminum plate).

2. Mount a heatsink and fan on the hot side for effective heat dissipation.

3. Connect to a 12V DC power supply (capable of 5–6A).

4. Monitor temperature using a thermistor or digital sensor (e.g., DHT11, DS18B20).

5. For automated control, use with a MOSFET or relay switch and Arduino or thermostat controller.

Applications:

• Mini fridges, water chillers, and beverage coolers

• CPU, GPU, and electronics enclosure cooling

• DIY temperature-controlled boxes

• Medical sample coolers

• Laboratory thermal experiments

• Incubators and aquaponics temperature control

• Renewable energy cooling systems

Package Includes:

• 1 x TEC1-12706 Thermoelectric Peltier Module (40mm × 40mm)
