The RM04 WiFi module is a compact and versatile WiFi communication module that provides wireless connectivity to various microcontrollers and embedded systems. It is commonly used in applications that require internet connectivity or network communication. Here’s a detailed description of the RM04 WiFi module:

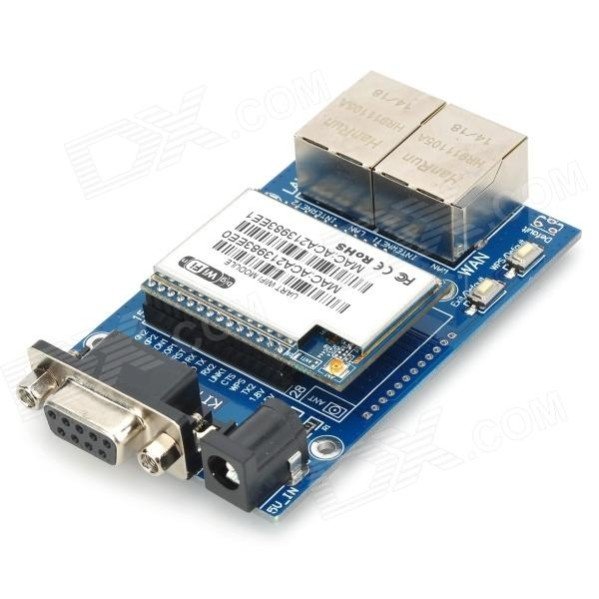

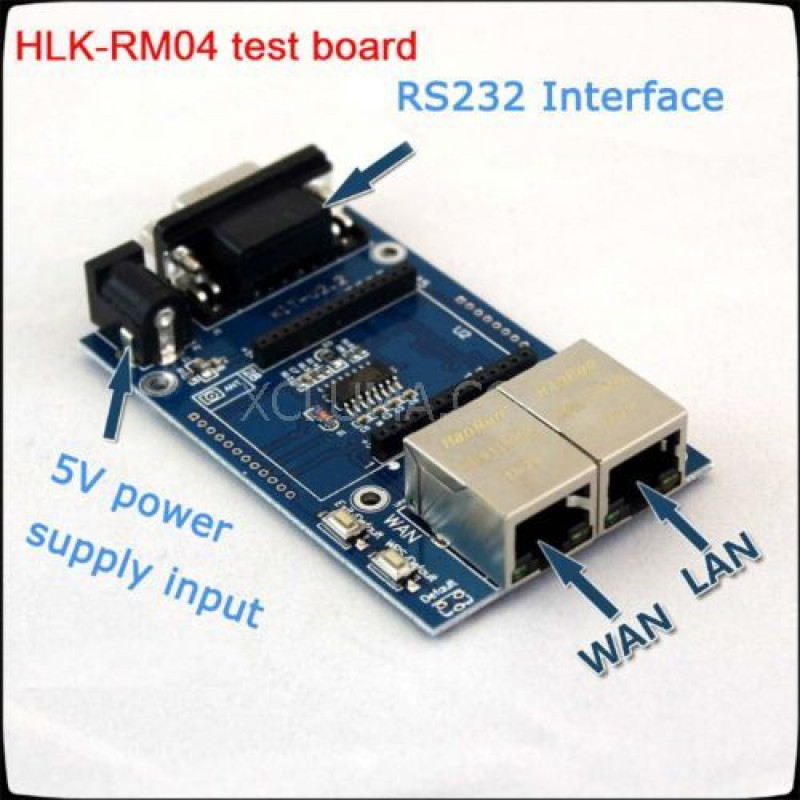

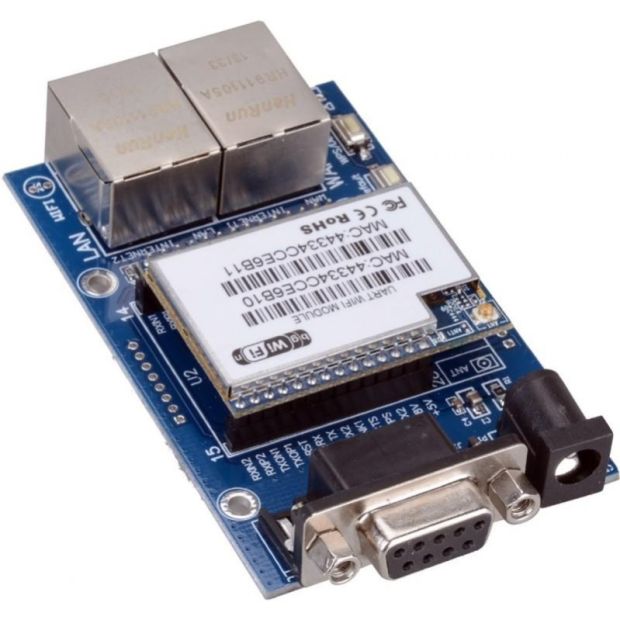

RM04 WiFi Module Overview

1. Microcontroller:

   • The RM04 module is typically based on the WIZnet W7500 microcontroller, which integrates a WiFi transceiver and TCP/IP stack.

2. Communication Interface:

   • The RM04 supports serial communication through UART (Universal Asynchronous Receiver/Transmitter), making it easy to interface with microcontrollers like Arduino, STM32, or other embedded systems.

3. Operating Voltage:

   • The module usually operates at 3.3V.

4. Frequency Range:

   • Operates in the 2.4 GHz ISM band.

5. Data Rate:

   • Supports data rates up to 54 Mbps.

6. Network Protocols:

   • TCP/IP stack is supported, enabling it to handle various network protocols and establish connections over the internet or local networks.

7. Antenna:

   • The module often includes an integrated PCB antenna or an external antenna connector for better range and signal strength.

8. Connection Pins:

   • VCC: Power supply pin (3.3V).
   • GND: Ground pin.
   • TXD: Transmit data pin (UART output).
   • RXD: Receive data pin (UART input).
   • RESET: Reset pin for restarting the module.
   • IO0: Used for various functions such as configuration and communication modes.

9. Features:

   • Built-in WiFi Stack: Handles all the low-level WiFi protocols and management.
   • TCP/UDP Communication: Supports both TCP and UDP protocols for network communication.
   • Easy Integration: Can be easily interfaced with microcontrollers through UART for sending and receiving data.

Applications:

• Internet of Things (IoT): Enables connectivity for IoT devices and sensors, allowing them to send data to a server or receive commands from the internet.
• Wireless Data Transfer: Facilitates wireless communication between devices, such as between a microcontroller and a web server.
• Embedded Systems: Useful in embedded systems requiring wireless communication capabilities without additional complex hardware.

Example Connection with Arduino:

To connect the RM04 WiFi module to an Arduino, follow these steps:

1. Connections:

   • VCC of RM04 to 3.3V on Arduino.
   • GND of RM04 to GND on Arduino.
   • TXD of RM04 to RX (e.g., pin 2) on Arduino.
   • RXD of RM04 to TX (e.g., pin 3) on Arduino.
   • RESET of RM04 to a push button or external reset circuitry (optional).

// Define pin for LED
const int ledPin = 13;  // Pin 13 is connected to the onboard LED

void setup() {
  // Start the serial communication at 9600 baud
  Serial.begin(9600);

  // Initialize pin 13 as an output for the LED
  pinMode(ledPin, OUTPUT);

  // Print a message to the Serial Monitor
  Serial.println("Hello from Arduino Nano R3!");
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);

  // Wait for 1 second
  delay(1000);

  // Turn the LED off
  digitalWrite(ledPin, LOW);

  // Wait for 1 second
  delay(1000);

  // Print to Serial Monitor
  Serial.println("LED is blinking...");
  delay(2000); // Delay for readability
}
