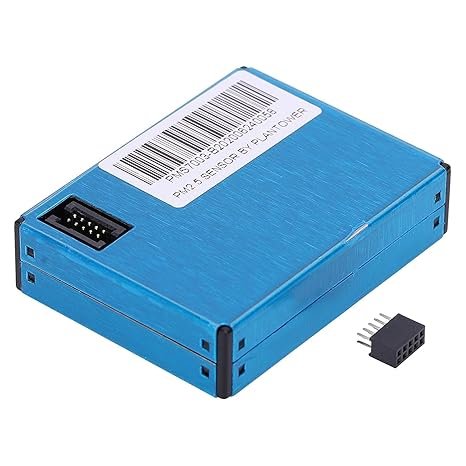

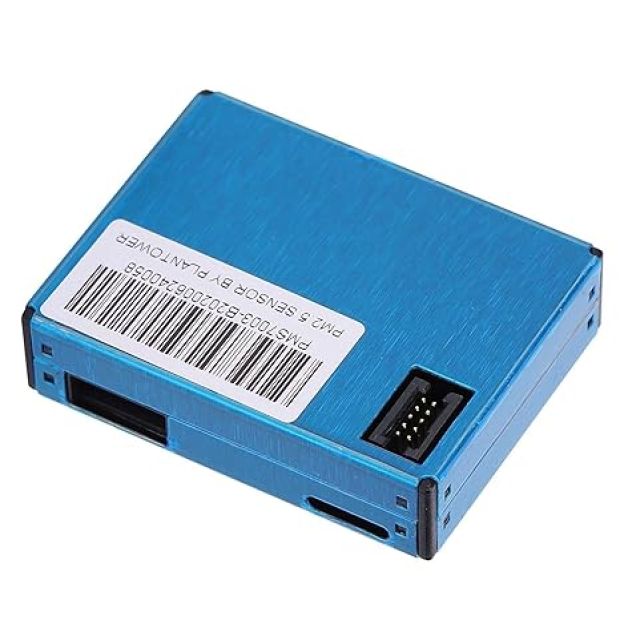

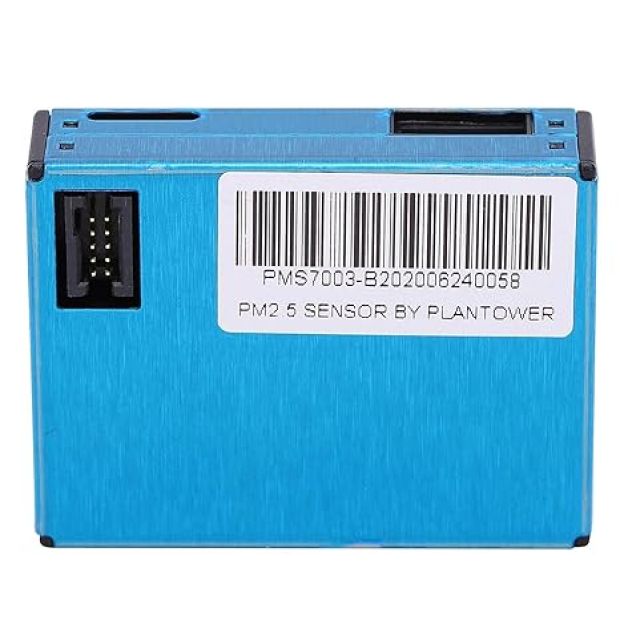

PMS7003 High-Precision Digital Laser Dust Particle Counter PM2.5 Sensor Module
Track air quality with the industry-grade PMS7003 Digital Laser Dust Particle Sensor Module. Utilizing advanced laser scattering technology, this ultra-compact sensor counts suspended particulate matter down to 0.3 microns in real-time. It delivers accurate, simultaneous digital readouts for PM1.0, PM2.5, and PM10 concentrations directly over a standard UART serial interface. Complete with an integrated dual-pass miniature fan and a slim 12-pin ribbon cable assembly, it is the premier choice for professional air purifiers, outdoor weather monitoring stations, portable air quality meters, and smart home HVAC systems.
₹ 2,029
₹ 2,599
| : |
Add FAQ
Detailed Description
The PMS7003 Digital Laser Dust Particle Sensor Module is a professional-grade, ultra-slim air quality sensor developed by Plantower to measure concentrations of suspended particulate matter. While older, low-cost optical dust sensors (like the sharp infrared variants) rely on simple thermal airflow convection and basic photodiodes—making them prone to severe calibration drift and inaccuracy—the PMS7003 uses advanced laser scattering principles. This provides highly precise, linear, and repeatable data that tracks matching laboratory-grade particulate monitoring instrumentation.
The module works by drawing a continuous stream of ambient air through its internal testing chamber using an integrated long-life miniature fan. Inside the chamber, a laser diode illuminates the incoming air stream. As suspended dust, smoke, pollen, or soot particles pass through the laser beam, they scatter the light in all directions. A high-speed photosensitive detector positioned at a specific angle captures this scattered light intensity.
An internal 32-bit ARM microprocessor processes the light signals in real-time, executing specialized Mie scattering algorithms to count individual particles and calculate their equivalent diameters. The module then outputs these concentration values in micrograms per cubic meter ($mu ext{g/m}^3$) via a standard digital UART interface.
Key Features and Benefits
-
Advanced Laser Scattering Design: Delivers fast, highly accurate, and continuous particle measurements that easily outperform traditional infrared optical sensors.
-

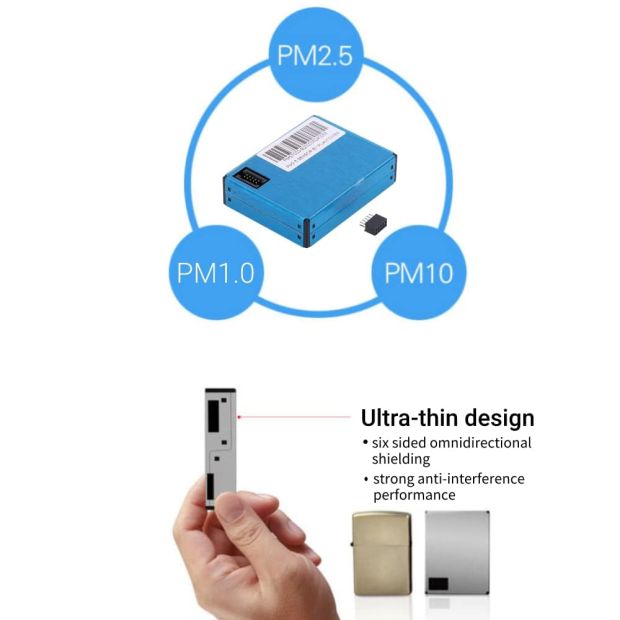

Triple-Target PM Metrics: Monitors three critical air quality bands simultaneously, providing discrete digital outputs for PM1.0, PM2.5, and PM10.
-
Ultra-Fine 0.3 Micron Resolution: Capable of counting microscopic airborne particles as small as 0.3 microns, making it highly sensitive to fine industrial smoke and exhaust soot.
-
Ultra-Thin 12mm Footprint: Slim, low-profile enclosure easily integrates into space-constrained devices like wall-mounted smart thermostats and portable handheld air monitors.
-
Onboard Shielding & Airflow Enclosure: Fully enclosed in a metal casing that blocks ambient electromagnetic interference (EMI) and prevents external stray light from corrupting sensor readings.
Technical Specifications
| Feature Component | Specification Details |
| Core Sensor Engine | Plantower PMS7003 (Laser Particulate Matter Sensor Series) |
| Measurement Parameters | PM1.0, PM2.5, PM10 Concentrations (μg/m^3) |
| Particle Detection Range | 0.3 μm to 10 μm (Microns) |
| Counting Efficiency | 50% @ 0.3 μm | 98% @ ≥ 0.5 μm |
| Concentration Resolution | 1 μg/m^3 steps |
| Response & Sampling Time | ≤ 1 Second continuous update sweeps |
| Operating Voltage Supply | 5.0V ± 0.1V DC (Powers internal laser and fan) |
| Logic Communication Level | 3.3V TTL Serial (Requires level shift for 5V systems) |
| Active Working Current | ≤ 100 mA during continuous sampling loops |
| Standby Sleep Current | ≤ 200 μA via hardware sleep pin control |
| Interface Data Protocol | UART Serial (9600 bps, 8 Data Bits, No Parity, 1 Stop Bit) |
How to Configure & Wire

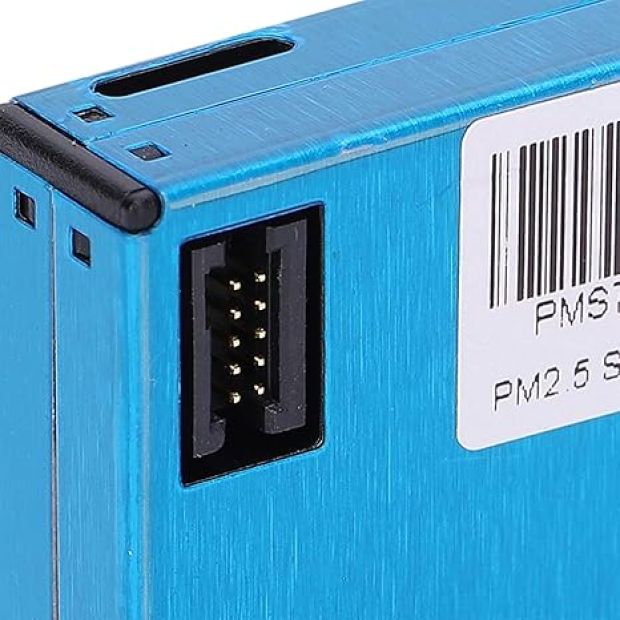

12-Pin Ribbon Cable Configuration:
The PMS7003 uses a fine-pitch 12-pin connector interface. For standard prototyping, focus on these five essential connection lines:
-
Pin 1 (VCC): Power supply input (+5V DC).
-
Pin 2 (GND): Common system ground reference.
-
Pin 3 (SET): Standby Control Pin. Pull high (3.3V) for normal operation; pull low to turn off the fan and laser, dropping the module into deep sleep mode.
-
Pin 4 (RX): UART Serial Receive line (3.3V level logic).
-
Pin 5 (TX): UART Serial Transmit line (3.3V level logic; pushes data packets every 1 second).
Quick Setup Prototyping Steps:
-
Connect VCC to 5V, GND to ground, and pull the SET pin up to 3.3V to turn on the sensor's internal fan.
-
Connect the sensor's TX pin to a hardware or software serial receive pin on your microcontroller (e.g., Arduino Pin 10 via
SoftwareSerial). -
Open your Arduino IDE, head to the Library Manager, search for "PMS" or "Plantower", and install the optimized
PMS Libraryby Mariusz Kiaszewicz. -
Flash the standard data stream example sketch. Open the Serial Monitor at 9600 bps to see real-time, active air quality metrics update every second:
PM 1.0 Concentration: 12 ug/m3
PM 2.5 Concentration: 24 ug/m3 <-- (Target Metric for Urban Smog)
PM 10 Concentration: 38 ug/m3
Applications
-
Smart Air Purifiers: Automatically scales up fan speeds in home air purifiers when localized PM2.5 or smoke concentrations spike.
-
IoT Weather Stations: Integrates into outdoor smart city grids to track and log ambient pollution, urban smog, and dust storm patterns.
-
Handheld Environmental Monitors: Powers portable, battery-operated air quality indexing (AQI) meters used for occupational safety checks.
-
HVAC Smart Ventilation Controls: Monitors incoming fresh air lines in modern office buildings, automatically closing external dampers during high outdoor pollution events.
Package Includes
-
1 x PMS7003 Digital Laser Dust Particle Counter Sensor Module
-
1 x Matching 12-Pin Ribbon Patch Cable Assembly
Shipping & Delivery
-
Free shipping on orders above ₹999 across India
-
Dispatched within 1-3 business days
-
Expected delivery: 3-7 business days depending on location
-
Secure packaging to ensure safe transit of electronic components
