Detailed Description:

The PIC16F628A is a low-power, high-performance CMOS 8-bit microcontroller based on Microchip’s PIC® architecture. It features a Harvard architecture with separate instruction and data buses, making it efficient and reliable. With 2KB Flash, 224 bytes SRAM, 128 bytes EEPROM, and a rich set of peripherals, the PIC16F628A is ideal for low-cost embedded control applications.

It offers features such as Timer0/1, Capture/Compare PWM (CCP) module, USART, Analog Comparator, and INT (interrupt-on-change) functionality. Its DIP-18 package is breadboard-friendly and easy to prototype. The device supports in-circuit serial programming (ICSP) and is compatible with PICkit 3/4, MPLAB X, and other Microchip tools.

Key Features:

• 8-bit RISC architecture (35 instructions)

• 2KB Flash Program Memory

• 224 Bytes SRAM & 128 Bytes EEPROM

• USART, PWM (CCP), Analog Comparator

• 18-pin DIP package – easy to prototype

• Low-power sleep modes and watchdog timer

• Timer0 and Timer1 support

• 4 MHz internal oscillator (with external support)

• Up to 20 MHz clock frequency

• In-Circuit Serial Programming (ICSP) compatible

• Supports MPLAB IDE & XC8 Compiler

Technical Specifications:

How to Use:

1. Insert into breadboard or DIP socket

2. Connect Vdd/Vss, MCLR, and oscillator (internal or external)

3. Program using PICkit 3/4 or compatible programmer via ICSP

4. Use UART, PWM, or digital I/O for your embedded system needs

5. Compile and upload code using MPLAB X IDE and XC8 Compiler

Applications:

• Basic automation and control systems

• Home appliance controllers

• Learning and training in embedded systems

• DIY hobby electronics

• Motor control and lighting control

• Sensor data acquisition

Package Includes:

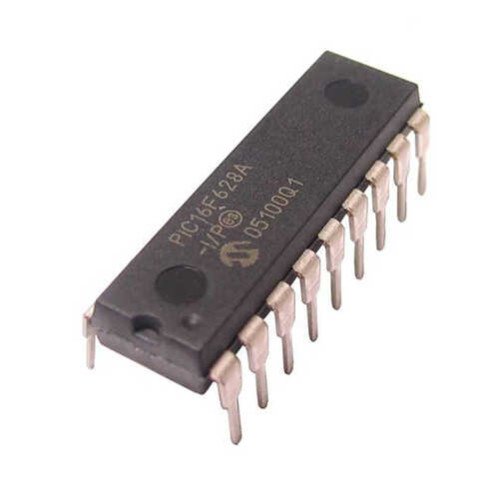

• 1 × PIC16F628A Microcontroller – DIP-18 Package
