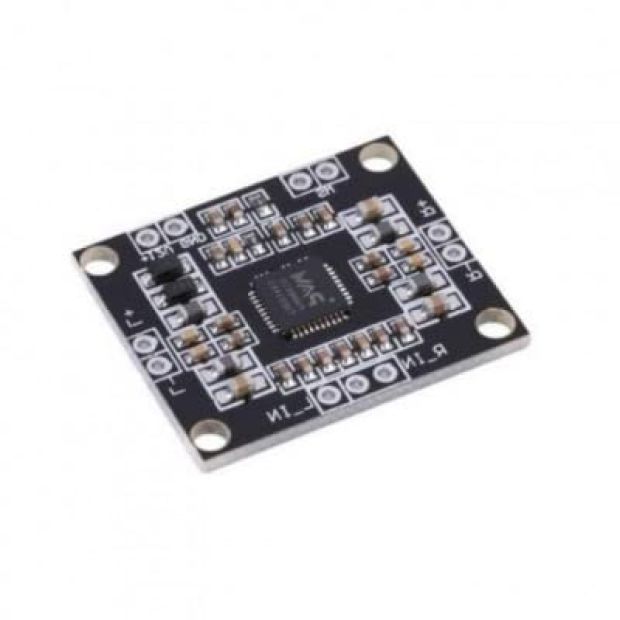

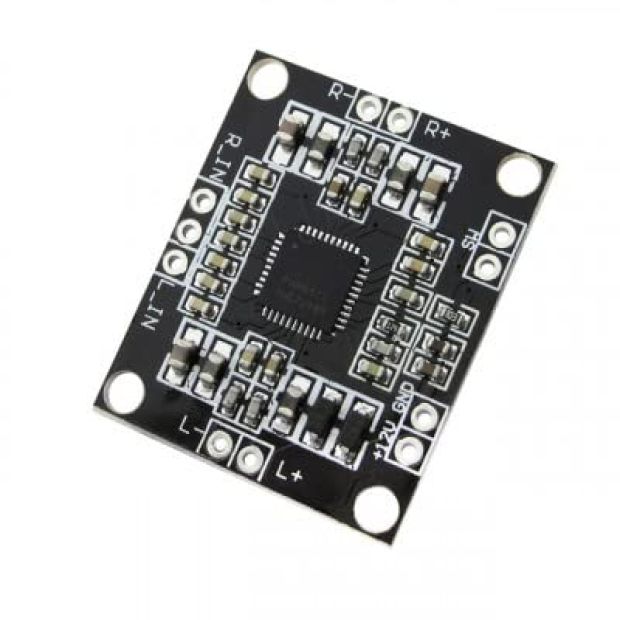

The Electroboat PAM8610 2x15W Digital Stereo Class-D Amplifier Board is a compact, power-efficient solution for driving dual stereo speaker setups. Built around the high-performance PAM8610 integrated circuit, this Class-D switching audio amplifier offers over 90% power efficiency, allowing it to deliver punchy, clear sound without requiring massive heat sinks.

Designed to operate on a standard 12V DC power input (9V to 15V DC range), this module provides dual-channel output, outputting up to 15W per channel into 4-ohm speakers or 10W per channel into 8-ohm speakers. With built-in noise suppression circuitry, over-current protection, thermal shutdown, and low total harmonic distortion (THD+N), it guarantees crisp sound reproduction for both portable battery-operated audio gear and stationary home audio projects.

Key Features and Benefits

• High Efficiency Class-D Topology: Operates at over 90% power efficiency, minimizing heat dissipation and conserving battery life in portable builds.

• Dual-Channel 2x15W Output: Delivers robust 15W + 15W stereo audio performance into 4Ω loads or 10W + 10W into 8Ω speakers.

• Wide Operating Voltage (9V–15V DC): Optimized for 12V DC power adapters, 3S lithium-ion battery packs, or motorcycle/car batteries.

• Built-in Protection Circuits: Includes integrated thermal overload protection, over-current protection, and power-on pop noise suppression.

• Ultra-Compact Footprint: Small size allows seamless integration into tight enclosures, custom Bluetooth speaker boxes, and portable audio receivers.

Technical Specifications

How to Use

1. Connect Power Input: Connect a clean, regulated 12V DC power source to the +12V and GND terminals. (Ensure correct polarity to prevent module damage).

2. Connect Audio Source: Wire your audio input (from a Bluetooth receiver module, 3.5mm AUX Jack, or microcontroller DAC) to the Left (L), Right (R), and Ground (GND) input pads.

3. Connect Speakers: Attach a 4Ω or 8Ω speaker to the Left (L+ / L-) and Right (R+ / R-) output terminals. Do not bridge the left and right speaker outputs together.

4. Power Up: Supply power and adjust your input audio volume for distortion-free sound playback.

Applications

• DIY Wireless Bluetooth Speakers & Portable Boomboxes

• Desktop Computer Audio Systems & Mini Soundbars

• Car, Motorcycle, & EV Audio Upgrades

• Arcade Game Machine Sound Modules & Interactive Kiosks

• STEM, Engineering Electronics, and DIY Audio Synthesizer Projects

Package Includes

• 1 x PAM8610 2x15W Digital Stereo Class-D Amplifier Board Module
