The 9027 refers to a model number commonly associated with a specific type of gas sensor module or component used in various applications. In the context of gas sensors, it typically relates to a module designed for detecting specific gases or environmental conditions.

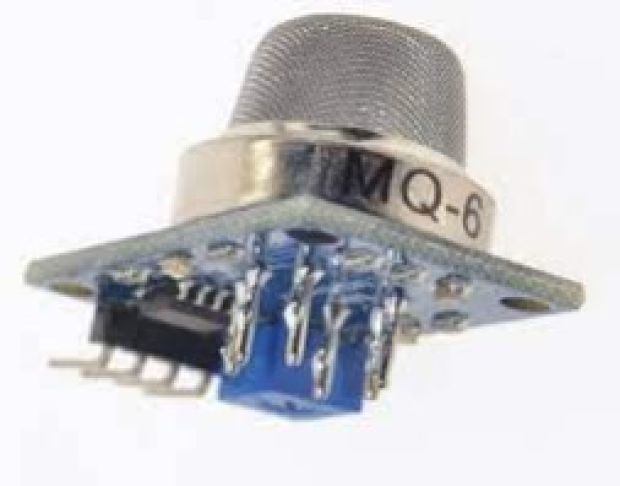

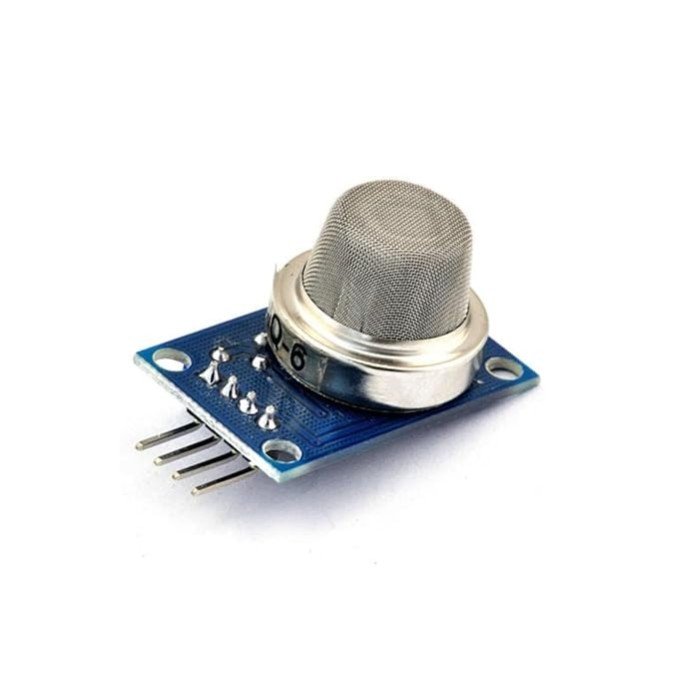

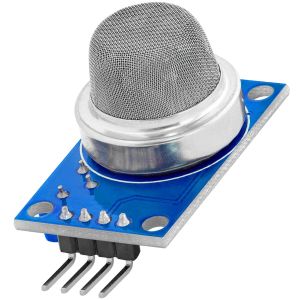

9027 Gas Sensor Module Overview:

1. Key Features:

• Gas Detection:

  • The 9027 module is designed to detect specific gases or gas concentrations. The exact gases it can detect depend on the specific type of 9027 sensor.

• Analog and Digital Outputs:

  • It usually features both analog and digital outputs. The analog output provides a voltage proportional to the gas concentration, while the digital output can be used to trigger alarms or alerts when a certain threshold is exceeded.

• Power Supply:

  • The module generally operates at a common voltage, typically 5V DC, but exact specifications may vary based on the specific sensor and its design.

• Heating Element:

  • Most gas sensors include a heating element to maintain the sensor's operating temperature, ensuring accurate readings.

2. Working Principle:

• Gas Detection:

  • The sensor detects gas concentration based on changes in the electrical resistance of its sensing material. Exposure to a target gas alters the resistance, which is measured as a change in voltage.

• Heating Process:

  • A heating element is used to maintain a consistent temperature for the sensing material, which is critical for reliable gas detection.

• Output Signal:

  • The sensor provides an analog signal that varies with gas concentration. Some models also include a digital output to indicate when gas levels exceed a preset threshold.

3. Circuit Connections:

• Power Supply:

  • Connect the VCC pin to a 5V power source and the GND pin to ground.

• Analog Output:

  • Connect the analog output pin to an analog input pin on a microcontroller or ADC for measuring gas concentration.

• Digital Output (if available):

  • If the module has a digital output pin, connect it to a digital input pin on the microcontroller. This pin can trigger an alert or alarm based on gas concentration levels.

• Heater Control:

  • Some modules might have a specific pin for controlling the heater. Consult the module's datasheet for detailed connection information.

4. Applications:

• Gas Leak Detection:

  • Used in systems to detect gas leaks and prevent potential hazards in industrial or residential settings.

• Air Quality Monitoring:

  • Employed to monitor the quality of the air by detecting the presence and concentration of gases.

• Environmental Monitoring:

  • Applied in systems that track gas concentrations to ensure safe and healthy environmental conditions.

5. Calibration:

• Initial Calibration:

  • Calibrate the sensor by exposing it to clean air to establish a baseline for zero gas concentration.

• Gas Concentration Calibration:

  • For accurate readings, calibrate the sensor with known concentrations of the target gases. This involves creating a calibration curve based on the sensor's response to these known levels.

6. Advantages:

• Versatility:

  • Suitable for detecting various gases depending on the specific sensor model.

• Cost-Effective:

  • Provides an affordable solution for gas detection and air quality monitoring.

• Ease of Integration:

  • Generally easy to integrate with microcontrollers and other electronic systems due to standard output types.

7. Limitations:

• Sensitivity to Interference:

  • The sensor may be affected by other gases or environmental factors, impacting accuracy.

• Warm-Up Time:

  • Requires a warm-up period to stabilize and provide accurate readings.

• Limited Lifespan:

  • The sensing material can degrade over time, affecting sensor performance.

Summary:

The 9027 gas sensor module is designed to detect specific gases and measure their concentrations. It is versatile and cost-effective, suitable for applications in gas leak detection, air quality monitoring, and environmental systems. Understanding its working principle, calibration requirements, and limitations will help ensure accurate and reliable performance in various applications. For exact specifications and details, refer to the datasheet or manufacturer's documentation specific to the 9027 model you are using.

import spidev
import time

# Set up SPI communication with MCP3008
spi = spidev.SpiDev()
spi.open(0, 0)  # Open SPI bus 0, chip select 0
spi.max_speed_hz = 1350000  # Set SPI speed

# Function to read data from MCP3008 ADC
def read_adc(channel):
    if channel < 0 or channel > 7:
        return -1  # Invalid channel
    adc = spi.xfer2([1, (8 + channel) << 4, 0])  # Send request to MCP3008
    result = ((adc[1] & 3) << 8) + adc[2]
    return result

# Function to calculate the gas concentration (arbitrary units)
def calculate_gas_concentration(adc_value, reference_voltage=3.3, adc_max_value=1023):
    # The ADC value is scaled from 0 to 1023. We map this value to a gas concentration.
    # Adjust this formula based on your calibration and sensor datasheet.
    gas_concentration = (adc_value / adc_max_value) * reference_voltage
    return gas_concentration

# Main loop to read and display gas sensor values
try:
    while True:
        # Read the analog value from the MQ-3 sensor (connected to channel 0)
        adc_value = read_adc(0)

        # Calculate the gas concentration (you can customize the formula)
        gas_concentration = calculate_gas_concentration(adc_value)

        # Print the results
        print(f"Raw ADC Value: {adc_value}")
        print(f"Gas Concentration: {gas_concentration:.2f} V")

        # Wait a bit before the next reading
        time.sleep(1)

except KeyboardInterrupt:
    print("Program interrupted.")

finally:
    spi.close()  # Close the SPI communication
