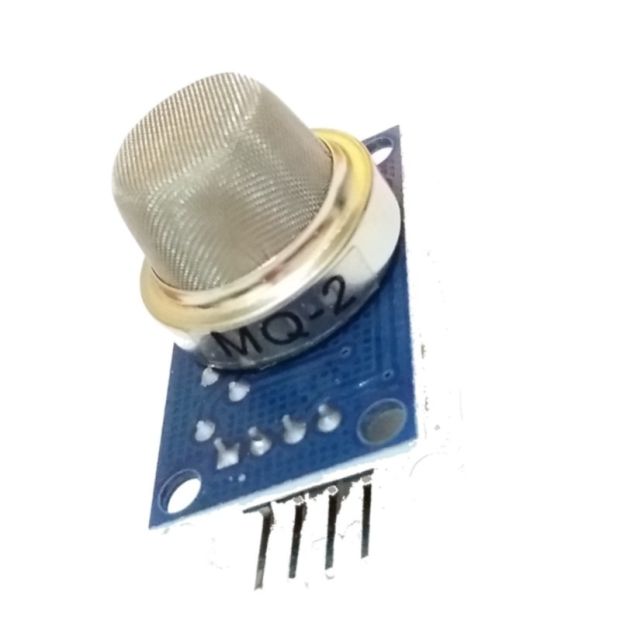

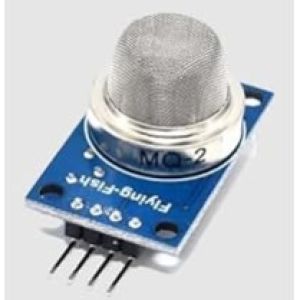

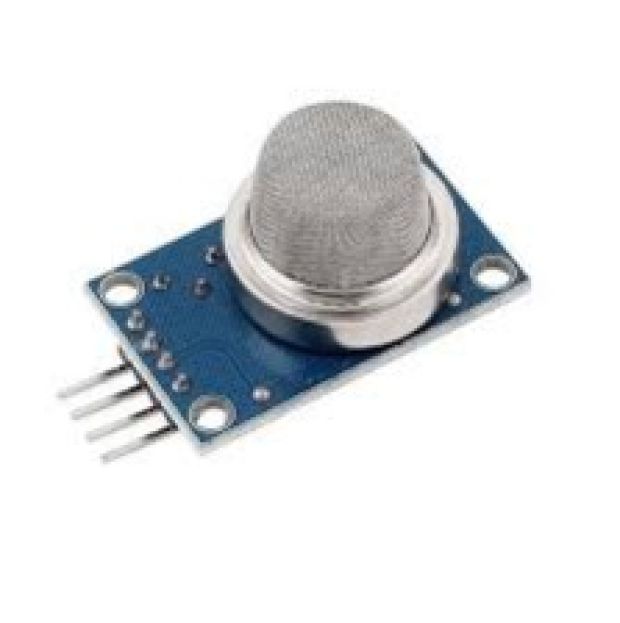

The MQ2 gas sensor module is a widely used sensor designed to detect the presence of various gases, including carbon monoxide (CO), methane (CH4), propane (C3H8), and smoke. It is commonly used in air quality monitoring, gas detection, and safety systems. Here’s a detailed description of the MQ2 gas sensor module:

1. Overview:

• Purpose:

  • The MQ2 sensor module is used to detect and measure the concentration of gases in the environment. It is particularly useful in applications involving air quality monitoring and gas leakage detection.

• Type:

  • The MQ2 module is a metal oxide semiconductor (MOS) sensor that operates by changing its resistance in the presence of specific gases. It is sensitive to multiple gases, making it versatile for various applications.

2. Key Components:

• MQ2 Gas Sensor:

  • The core component is the MQ2 gas sensor, which contains a sensing element (usually made of tin dioxide, SnO2) that changes resistance based on the concentration of gases.

• Heater:

  • The sensor includes a heating element that heats the sensing material to ensure accurate gas detection. The heating element helps in creating a stable operating temperature for the sensor.

• Analog Output:

  • The sensor provides an analog output voltage that varies with the concentration of the detected gas. This output can be read by an analog-to-digital converter (ADC) or microcontroller.

• Digital Output (Optional):

  • Some MQ2 modules include a digital output that can be used to trigger an alert when the gas concentration exceeds a predefined threshold. This output is typically a binary signal (high or low).

3. Working Principle:

• Gas Detection:

  • When the sensor is exposed to gases, the sensing material’s resistance changes. This change in resistance is related to the concentration of the target gases. Higher gas concentrations generally lead to a lower resistance in the sensor material.

• Heating Process:

  • The built-in heater maintains the sensor at a constant temperature, ensuring that the resistance change is consistent and reliable.

• Output Signal:

  • The sensor’s resistance change produces a corresponding change in the analog output voltage. This voltage can be measured and converted into a gas concentration value using calibration data.

4. Circuit Connections:

• Power Supply:

  • The MQ2 module typically operates at 5V DC. Connect the VCC pin to a 5V power source and the GND pin to ground.

• Analog Output:

  • Connect the analog output pin (A0) to an analog input pin on a microcontroller or ADC for measuring the gas concentration.

• Digital Output (if available):

  • If the module includes a digital output pin (D0), connect it to a digital input pin on the microcontroller. This pin can be used to trigger an alert when the gas concentration exceeds a set threshold.

• Heater Control:

  • Some modules may require a specific control pin for the heater. Refer to the module’s datasheet for details.

5. Applications:

• Air Quality Monitoring:

  • Used in systems that monitor indoor air quality by detecting the presence of harmful gases and pollutants.

• Gas Leak Detection:

  • Employed in safety systems to detect gas leaks in industrial environments, homes, or vehicles.

• Smoke Detection:

  • Can be used in smoke detection systems to provide an early warning of potential fire hazards.

• Environmental Monitoring:

  • Applied in environmental monitoring systems to track gas concentrations and ensure safe air quality levels.

6. Calibration:

• Initial Calibration:

  • The sensor requires calibration to establish a baseline reading for clean air. This is typically done by exposing the sensor to clean air and recording the baseline resistance.

• Gas Concentration Calibration:

  • To measure specific gas concentrations accurately, the sensor must be calibrated with known gas concentrations. This calibration helps convert the analog output voltage into meaningful gas concentration values.

7. Advantages:

• Versatility:

  • Sensitive to multiple gases, including carbon monoxide, methane, propane, and smoke, making it suitable for various applications.

• Cost-Effective:

  • Provides an affordable solution for gas detection and air quality monitoring.

• Ease of Use:

  • Simple to integrate with microcontrollers and development boards due to its analog and optional digital outputs.

8. Limitations:

• Sensitivity to Interference:

  • The sensor may be affected by other gases or environmental factors, which can impact accuracy. Calibration is crucial for reliable readings.

• Warm-Up Time:

  • The sensor may require a warm-up period to reach a stable operating temperature, which can affect initial readings.

• Limited Lifespan:

  • The sensing material can degrade over time, which may affect the sensor’s performance and accuracy.

9. Example Use Case:

Gas Leak Detection System:

• In a gas leak detection system, the MQ2 sensor is used to monitor the concentration of gases in the environment. When the sensor detects a gas concentration above a predefined threshold, it triggers an alert or activates a safety mechanism to prevent potential hazards.

Summary:

The MQ2 gas sensor module is a versatile and cost-effective solution for detecting and measuring various gases. Its ease of integration, combined with its sensitivity to multiple gases, makes it suitable for a wide range of applications, from air quality monitoring to safety systems. Proper calibration and understanding of the sensor’s limitations are essential for accurate and reliable performance.
