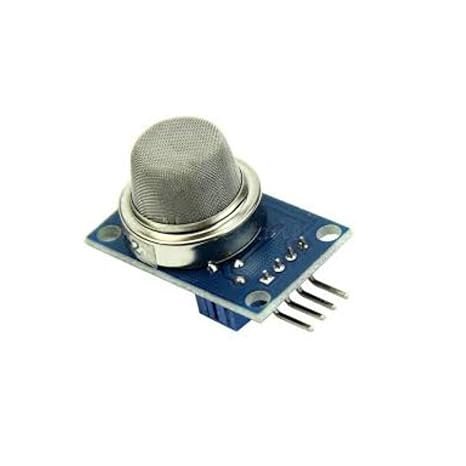

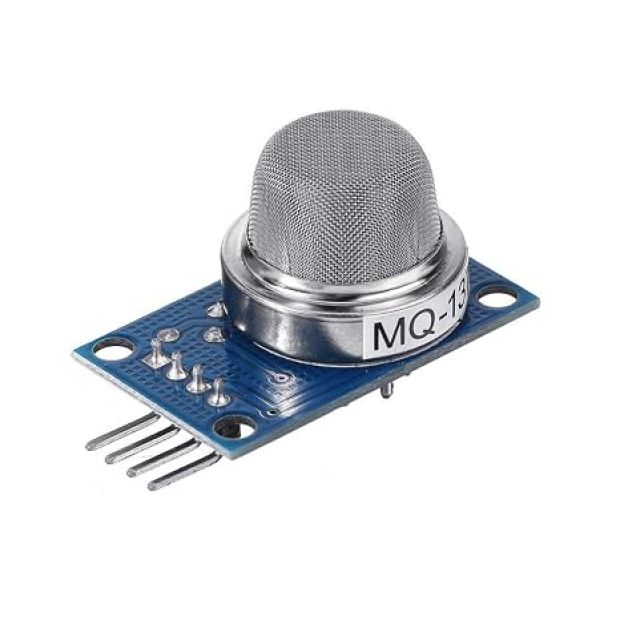

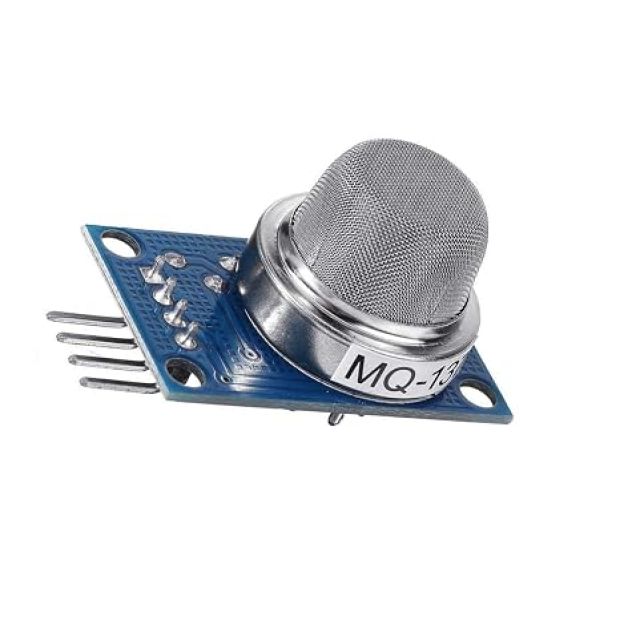

MQ-137 Ammonia (NH3) Gas Sensor Detection Module with Digital/Analog Outputs

Monitor air safety and chemical leaks with the highly sensitive MQ-137 Ammonia (NH3) Gas Sensor Module. Utilizing a specialized SnO2 semiconductor layer and an integrated precision micro-heater, this module accurately detects ammonia gas concentrations across a broad spectrum from 5 ppm to 500 ppm. Featuring dual signal paths—a smooth, continuous analog voltage line for detailed concentration data logging and an adjustable TTL digital threshold switch for instant hardware alarm triggering—it interfaces seamlessly with Arduino, ESP32, and Raspberry Pi architectures. It is the premier choice for livestock ventilation, cold storage refrigeration tracking, sewage safety nodes, and industrial environmental monitoring.

( No Reviews )

₹ 1,279 ^{₹ 1,629}

Order From Whatsapp

Seller Electro Boat

Tags MQ-137 Sensor Ammonia Gas Module NH3 Leak Detector MQ-137 Arduino Ammonia Gas Alarm MQ137 Pinout Poultry Gas Sensor Cold Storage Leak Monitor Digital Gas Switch

No Cancellation

No Returnable

Product Details :

Detailed Description

The MQ-137 Ammonia (NH3) Gas Sensor Module is an essential environmental safety interface engineered to monitor, log, and trigger alarms for ambient ammonia gas concentrations. Ammonia is a foundational chemical compound widely used in agricultural fertilizers, commercial refrigeration loops, and chemical synthesis plants. However, it is a highly pungent, toxic, and corrosive gas that presents serious respiratory health hazards even at relatively low exposure levels. The MQ-137 module addresses this critical risk by using a Tin Dioxide ( $SnO_2$ ) semiconductor grid that changes its internal electrical resistance when it comes into contact with ambient ammonia molecules, providing clear data long before toxic thresholds are reached.

In clean, fresh air, the surface oxygen ions on the sensor's heated layer keep its electrical conductivity low. When ammonia gas enters the monitoring zone, it acts as a reducing agent, reacting with these oxygen ions to lower the sensor's internal resistance. The breakout board uses an integrated dual-comparator circuit to split this resistance shift into two user-friendly output signals: a continuous analog voltage line (A0) that rises linearly with gas concentration, and a TTL-compatible digital switch (D0). Equipped with an onboard multi-turn trimmer potentiometer, the module can operate as a standalone safety switch, immediately activating emergency ventilation fans, sirens, or status LEDs when gas levels cross your calibrated limit.

Key Features and Benefits

High Chemical Selectivity: Specially optimized to react strongly to Ammonia ( $NH_3$ ), making it an excellent choice for targeted agricultural and industrial leak-detection zones.
Low ppm Threshold Tracking: Accurately measures low-level gas concentrations from 5 ppm up to a heavy 500 ppm saturation limit.
Dual Output Architecture: Features an analog voltage pin for detailed telemetry tracking alongside a digital trigger pin for reactive, low-latency safety cut-offs.
Onboard Sensitivity Calibration: Populated with an accessible multi-turn precision potentiometer for fine-tuning your digital alarm thresholds.
Universal 5V System Integration: Powered via a standard 5V supply, allowing it to interface directly with common prototyping microcontrollers without needing external level shifting.

Technical Specifications

Feature Component	Specification Details
Core Sensor Model	MQ-137 (Metal-Oxide Semiconductor Gas Array)
Target Gas Type	Ammonia Gas ( $NH_3$ ) Primarily
Detection Concentration Scope	$5 ext{ ppm}$ to $500 ext{ ppm}$ (Parts Per Million)
Logic Supply Voltage Window	$5.0 ext{V} pm 0.1 ext{V}$ DC (Requires clean regulated input)
Internal Heater Resistance	$31 Omega pm 3 Omega$ (At ambient room conditions)
Heater Power Consumption	$le 900 ext{mW}$ (Continuous thermal current loop draw)
Onboard Driving Chipset	LM393 Dual Differential Hardware Comparator IC
Output Communication Profile	Analog Voltage ( $0.1 ext{V}$ to $4.5 ext{V}$ ) \| Digital TTL Switch (0V / 5V)
Environmental Operations	Temperature: $-10^circ ext{C}$ to $+50^circ ext{C}$ \| Humidity: ≤ $$le 95% ext{ RH$

How to Configure & Wire

⚠️ CRITICAL SENSOR PRE-HEATING MANDATE: Like all metal-oxide gas sensors, the MQ-137 relies on an internal heating element to activate its underlying chemical layer. When powering up a new sensor for the first time, you must let it run continuously for 24 to 48 hours (Burn-In Phase) to stabilize the readings. For everyday prototyping, allow the sensor to warm up for 60 to 90 seconds before logging data. The sensor will feel noticeably warm to the touch during operation—this thermal activity is completely normal and required for proper sensing.

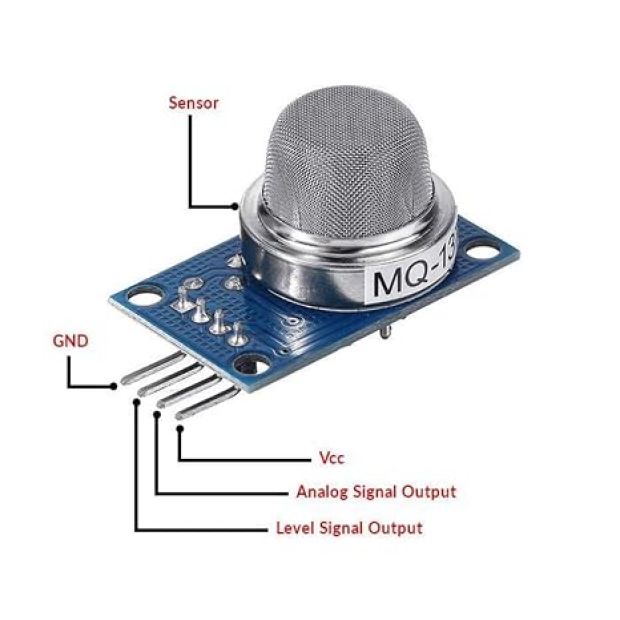

Module Pinout Identification:

VCC: Power supply input ( $+5 ext{V DC}$ strict regulated rail).
GND: Common system ground reference.
D0: TTL Digital Output pin (Pulls LOW when gas concentration exceeds your potentiometer threshold).
A0: Analog Voltage Output pin (Outputs a shifting voltage curve directly proportional to local gas density).

Quick Calibration Steps:

Connect VCC to a stable 5V rail and GND to your system ground loop.
Connect the A0 pin to an analog input on your host microcontroller (e.g., Arduino A0).
Power up the circuit and wait 2 minutes for the internal heater to reach its stable operating temperature.
Setting the Hardware Threshold: To configure the standalone digital switch, place the module in fresh air and turn the blue trimmer potentiometer screw until the onboard digital status LED just turns off. When the sensor is exposed to ammonia (such as vapor from a household glass cleaner), the status LED will light up immediately, indicating a successful trigger.

Applications

Poultry & Livestock Ventilation Systems: Monitors toxic ammonia outgassing caused by animal waste in poultry farms and cattle sheds, automatically engaging exhaust fans to maintain safe livestock air quality.
Cold Storage Ammonia Leak Detection: Serves as an affordable safety sensor node near commercial refrigeration loops, compressors, and cooling pipes that use anhydrous ammonia as a refrigerant.
Wastewater & Sewage Gas Tracking: Monitors hazardous gas accumulation around water treatment bays, septic storage tanks, and sewage processing plants.
Industrial Smart Gas Alarms: Integrates easily into safety monitoring grids for chemical laboratories, fertilizer plants, and industrial processing bays.
