Mini 360 Step-Down Buck Converter Power Module 4.75V-23V to 1V-17V Adjustable DC Voltage Regulator

Step down DC voltages efficiently in ultra-compact designs with the Electroboat Mini 360 Step-Down Buck Converter Power Module. Powered by the MP2307DN monolithic synchronous buck converter IC, this tiny module converts input voltages ranging from 4.75V to 23V down to an adjustable 1.0V to 17V DC output. With high energy conversion efficiency (up to 96%) and synchronous rectification, it is perfect for space-constrained electronics like RC aircraft, quadcopters, battery-powered IoT nodes, and custom power supplies.

( No Reviews )

₹ 30 ^{₹ 49}

Order From Whatsapp

Seller Electro Boat

Tags mini 360 buck converter mini 360 step down module mp2307dn buck converter dc dc step down converter electroboat buck module mini voltage regulator board adjustable buck module 3a

No Cancellation

No Returnable

Product Details :

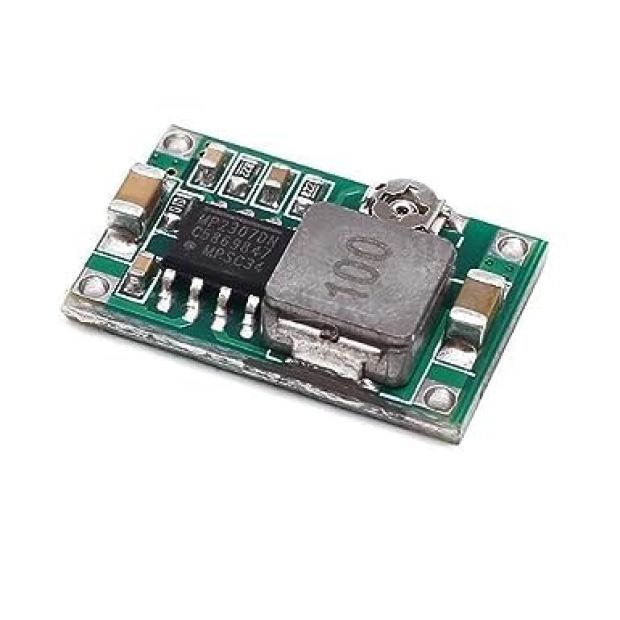

The Electroboat Mini 360 Step-Down Buck Converter Power Module is one of the smallest high-efficiency DC-DC step-down voltage regulators available. Utilizing the MP2307DN integrated controller, this module employs synchronous rectification technology to achieve efficiency levels up to 96% while keeping heat generation to an absolute minimum.

Its miniature 17mm × 11mm footprint makes it an ideal replacement for bulky traditional linear regulators (like the 7805 or LM317) in space-critical applications. It features an onboard multi-turn potentiometer for precise output voltage adjustment between 1V and 17V. Built-in cycle-by-cycle over-current protection and 160°C thermal shutdown ensure safe operation under varying load conditions.

Key Features and Benefits

Ultra-Compact Form Factor: Measures only 17mm × 11mm, enabling seamless integration into small enclosures and drone frames
Synchronous Rectification Technology: Delivers up to 96% efficiency, maximizing battery runtime in portable devices.
Wide Input & Output Range: Accepts inputs from 4.75V to 23V DC and delivers adjustable outputs from 1.0V to 17V DC
High Switching Frequency (340 kHz): Allows for low output ripple (~30mV) and smooth power delivery.
Integrated Circuit Protection: Includes thermal shutdown at 160°C and automatic over-current limiting.

Technical Specifications

Parameter	Specification
Control IC	Monolithic Power Systems MP2307DN
Module Type	Non-Isolated Step-Down (Buck) Converter
Input Voltage Range	4.75V to 23V DC
Output Voltage Range	1.0V to 17V DC (Adjustable via Potentiometer; $V_{OUT} < V_{IN}$ )
Output Current	1.8A Continuous (3A Surge Peak)
Conversion Efficiency	Up to 96%
Switching Frequency	340 kHz
Output Ripple	~30mV (No load)
Operating Temperature	-40°C to +85°C

How to Use

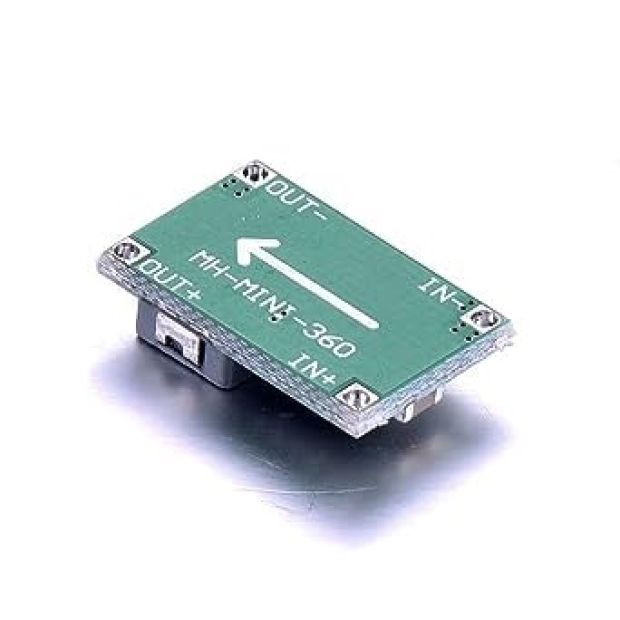

Connect Power Input: Solder your DC power supply wires (4.75V to 23V) to the IN+ and IN- pads.
Adjust Output Voltage: Before connecting your load/circuit, apply input power and use a digital multimeter to measure the voltage across OUT+ and OUT-. Turn the brass screw on the potentiometer counterclockwise/clockwise until you reach your target output voltage.
Connect Load: Turn off the power supply, then connect your microcontroller, sensor, or motor circuit to the OUT+ and OUT- solder pads.
Thermal Precaution: For continuous current loads above 1.5A, ensure proper ventilation or add a small heat sink to prevent thermal throttling.

Applications

Quadcopter, FPV Drone, and RC Model Flight Controllers
Powering 5V / 3.3V Microcontrollers (Arduino, ESP32, Raspberry Pi) from 12V Batteries
Automotive Electronics, Dashcams, and USB Power Supplies
DIY Portable Battery Packs & IoT Energy Management
Small DC Motor & LED Strip Power Regulation

Package Includes

1 x Mini 360 Step-Down Buck Converter Power Module
