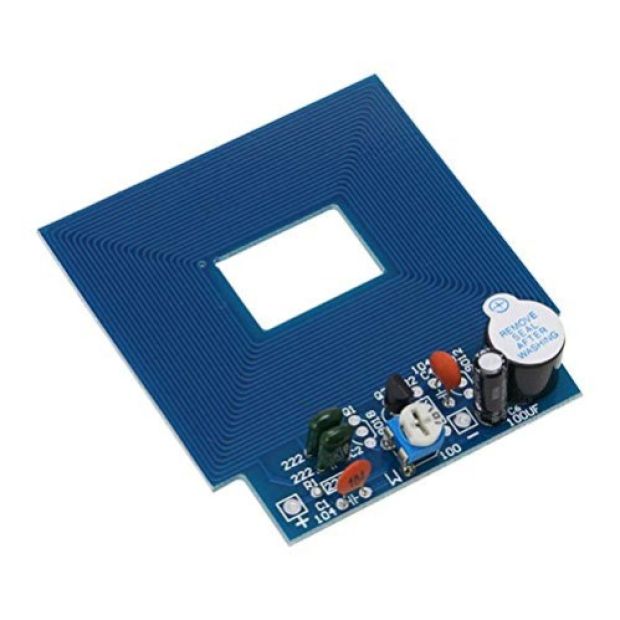

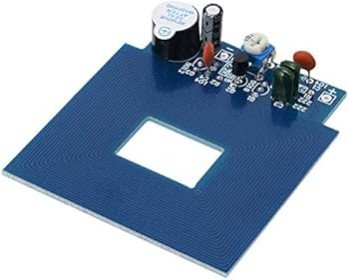

A metal detector sensor module is an electronic device used to detect the presence of metal objects. It operates by detecting changes in the electromagnetic field caused by the presence of metal. These sensors are often used in security systems, industrial applications, and hobby projects.

Key Features:

1. Detection Principle:

   • Electromagnetic Induction: Uses electromagnetic fields to detect metal objects. When metal is present, it causes changes in the inductance or impedance of the coil, which the sensor can detect.

2. Sensitivity:

   • Adjustable Sensitivity: Many metal detector modules allow you to adjust the sensitivity to detect different sizes and types of metal objects.

3. Output Types:

   • Digital Output: Provides a binary signal (high or low) indicating the presence of metal.
   • Analog Output: Some sensors provide a continuous signal proportional to the detected metal's strength.

4. Detection Range:

   • Varies by Model: The range can vary depending on the sensor design, typically from a few centimeters to several meters.

5. Power Supply:

   • Voltage Requirements: Often operates on low DC voltages, such as 5V or 12V.

Applications:

1. Security Systems:

   • Metal Detectors: Used in security systems to detect metal objects such as weapons at checkpoints.

2. Industrial Applications:

   • Metal Detection: Used in manufacturing processes to detect metal contaminants or ensure metal parts are present.

3. Hobby Projects:

   • DIY Metal Detectors: Used in amateur metal detectors for treasure hunting or educational projects.

4. Educational Use:

   • STEM Projects: Utilized in educational settings to teach principles of electromagnetism and sensor technology.

Selecting the Right Sensor:

1. Detection Range:

   • Choose Based on Application: Select a sensor with a detection range suitable for your needs, whether it's for small metal objects or larger industrial applications.

2. Sensitivity Adjustment:

   • Adjustable Settings: Choose a sensor that allows you to adjust sensitivity to detect different types and sizes of metal objects.

3. Output Type:

   • Digital vs. Analog: Decide whether you need a digital on/off signal or an analog signal for further processing.

4. Power Requirements:

   • Voltage Compatibility: Ensure the sensor operates at a voltage compatible with your power supply.

Wiring and Installation:

1. Power Supply:

   • Connect Power: Provide the appropriate power supply to the sensor module, typically 5V or 12V DC.

2. Connecting the Output:

   • Digital Output: Connect the digital output pin to a microcontroller or alert system.
   • Analog Output: Connect the analog output to an analog input of a microcontroller or data acquisition system.

3. Mounting:

   • Positioning: Mount the sensor in a position where it can effectively detect the presence of metal. Ensure it's aligned correctly based on its intended use.

4. Calibration:

   • Adjust Sensitivity: Calibrate the sensor according to the requirements of your application to ensure accurate detection.
