MCP4725 I2C 12-Bit Digital-to-Analog Converter (DAC) Breakout Module

Generate smooth, precise continuous analog voltages from your microcontrollers with the Electroboat MCP4725 12-Bit I2C DAC Breakout Module. Unlike standard pulse-width modulation (PWM), this board delivers true analog output voltage with 4,096 levels of resolution over a two-wire I2C interface. Featuring onboard EEPROM memory to save settings across power cycles, it is perfect for audio generation, variable power supply controls, sensor calibration, and instrumentation.

( No Reviews )

₹ 123 ^{₹ 219}

Order From Whatsapp

Seller Electro Boat

Tags mcp4725 breakout i2c dac module 12bit dac breakout mcp4725 module electroboat dac board analog output module arduino mcp4725 eeprom dac

No Cancellation

No Returnable

Product Details :

The Electroboat MCP4725 I2C 12-Bit DAC Breakout Board is a high-precision, single-channel buffered voltage output Digital-to-Analog Converter module. While standard microcontrollers like Arduino Uno can only simulate analog signals using PWM, the MCP4725 converts digital data words into true, stable analog DC voltage outputs ranging from 0V up to your power supply rail (VCC).

Equipped with an integrated non-volatile EEPROM, the MCP4725 allows you to store the DAC input register settings so that the specified output voltage is restored automatically upon power-up—without requiring microcontrollers to re-send instructions. With configurable I2C bus addressing and fast response times, it is an essential component for custom waveform generation, precise motor control, and digital audio synthesizer projects.

Key Features and Benefits

True 12-Bit Resolution: Produces 4,096 individual step increments (0 to 4095) for ultra-fine analog voltage adjustment.
Integrated Non-Volatile EEPROM: Saves DAC output settings internally so the module powers up with your pre-saved default voltage.
Fast I2C Interface: Supports Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) I2C communication modes.
Configurable I2C Address: Includes solder jumper pads (A0) allowing up to two MCP4725 modules on a single I2C bus line.
Wide Operating Voltage (2.7V–5.5V): Compatible with 3.3V and 5V logic microcontrollers, including Arduino, ESP32, STM32, and Raspberry Pi.

Technical Specifications

Parameter	Specification
DAC IC	Microchip MCP4725
Resolution	12-Bit (4096 Steps)
Operating Voltage (VCC)	2.7V to 5.5V DC
Interface	I2C (Standard, Fast, and High-Speed modes)
I2C Address	0x62 (Default) or 0x63 (Jumper configurable)
Output Type	Rail-to-Rail Buffered Voltage Output
Onboard Memory	Integrated EEPROM for persistent setting storage
Settling Time	6 µs (typical)

How to Use

Power Connections: Wire VCC to 3.3V or 5V DC and GND to common ground.
I2C Connections: Connect SDA to your microcontroller's I2C data line and SCL to the clock line.
Signal Output: Take your true analog voltage signal from the OUT terminal pin relative to GND.
Programming: Use available standard Arduino libraries (e.g., Adafruit_MCP4725) to write 12-bit integer values (0 to 4095) to output voltages calculated as:

$ext{V}_{OUT} = rac{ ext{V}_{CC} imes ext{DAC Input Code}}{4096}$

Applications

Arbitrary Function Waveform Generators (Sine, Square, Triangle Waves)
Digital Volume Controls & Audio Synthesizers
Precision Adjustable Reference Voltage Source
Closed-Loop Process Controllers & Motor Speed Regulation
Sensor Calibration and Industrial Instrumentation Equipment

Package Includes

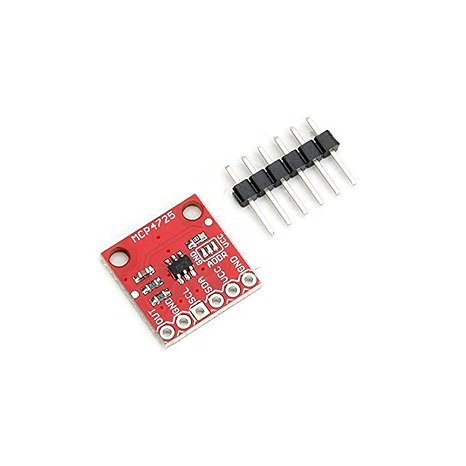

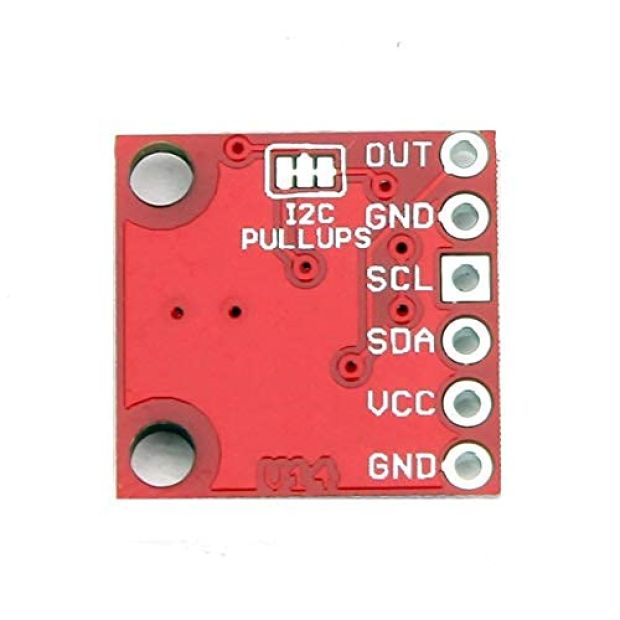

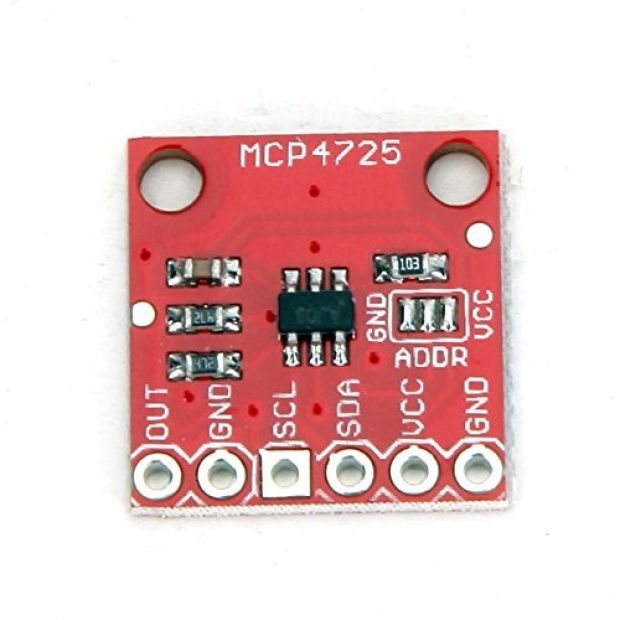

1 x MCP4725 I2C 12-Bit DAC Breakout Board

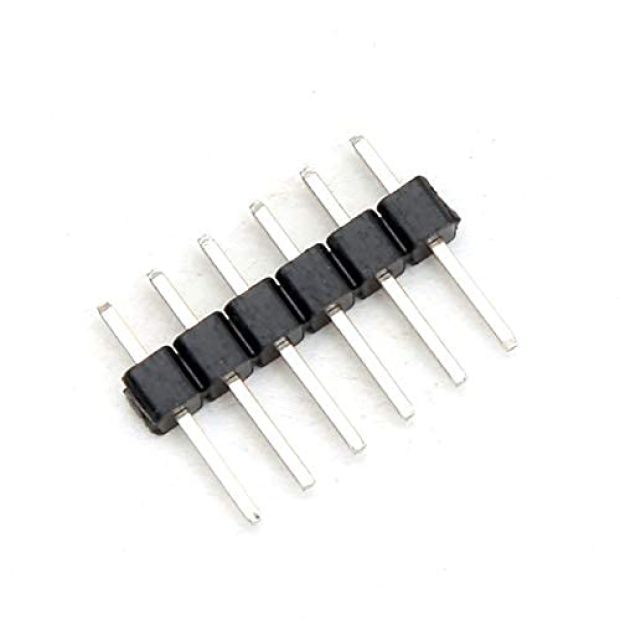

1 x 6-Pin Straight Male Header (2.54mm Pitch)

Shipping & Delivery

Free shipping on orders above ₹999 across India.
Dispatched within 1-3 business days.
Expected delivery: 3-7 business days depending on location.
Secure ESD and cushioned packaging to ensure safe transit of electronic components.
