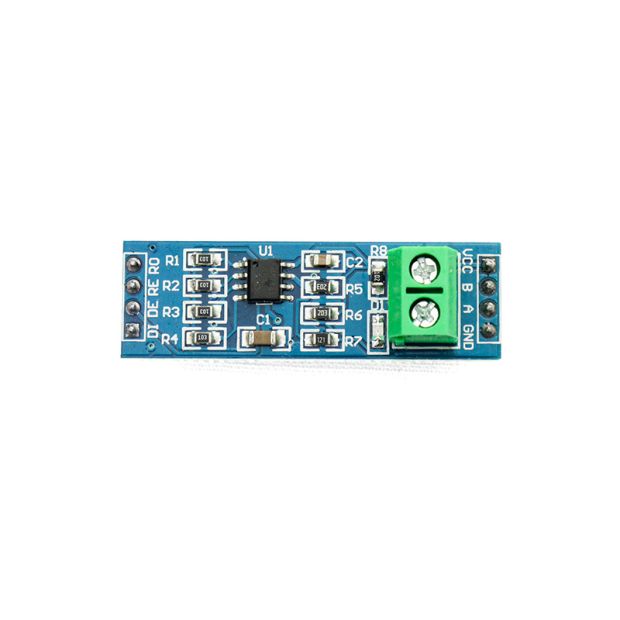

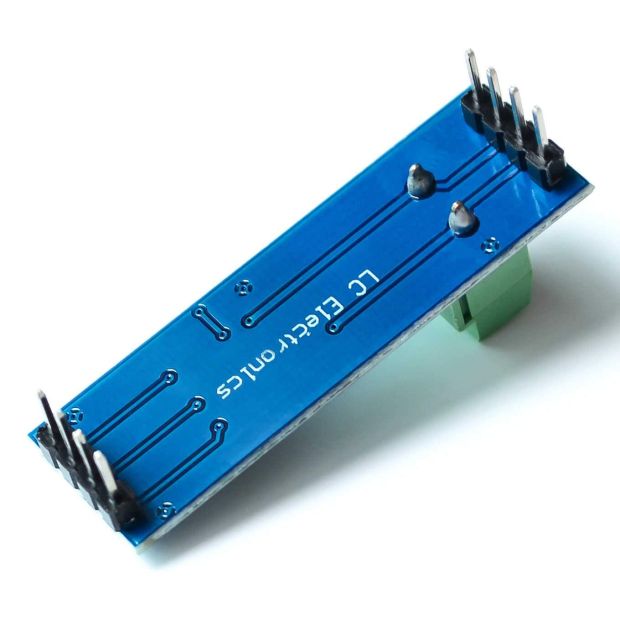

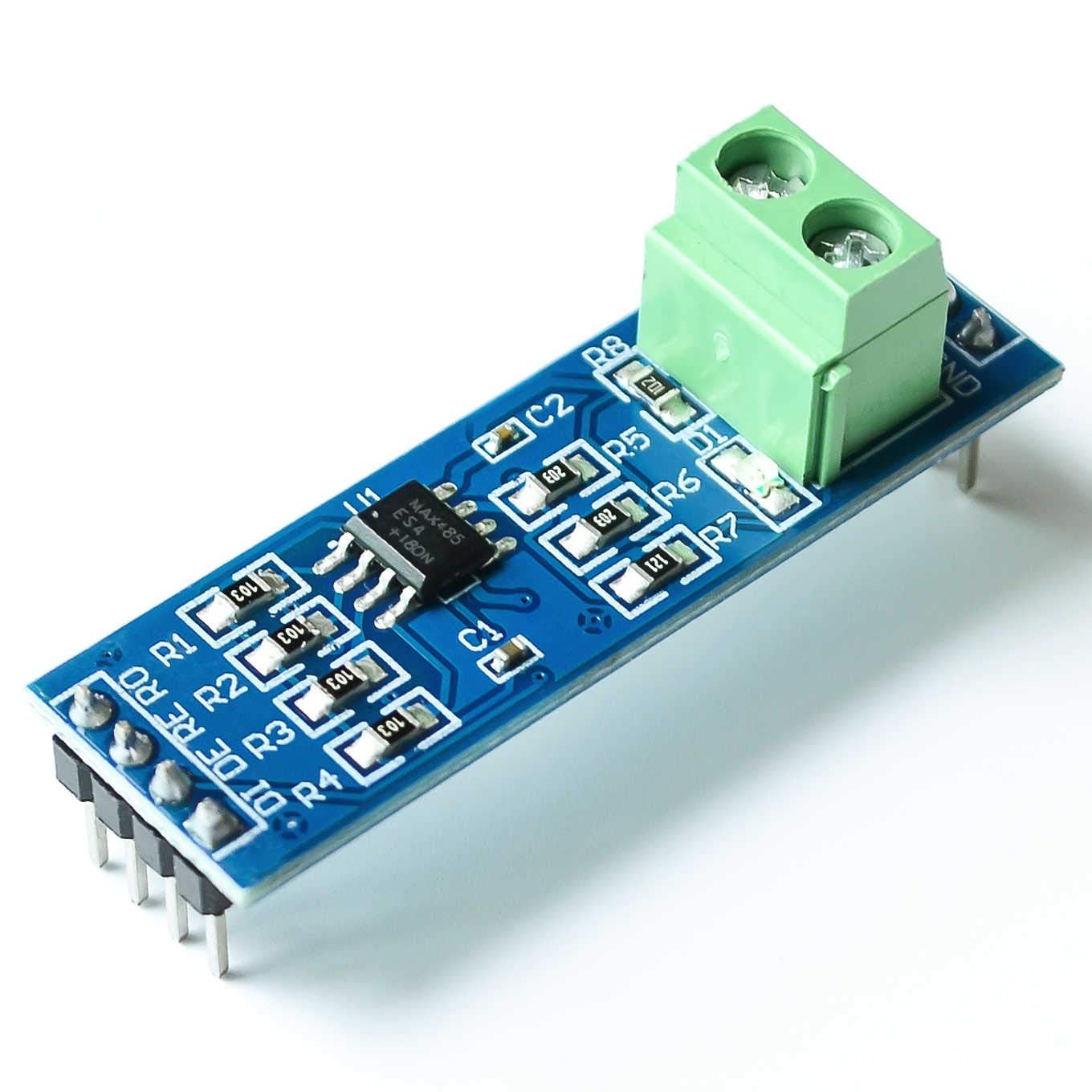

The MAX485 TTL to RS485 Converter Module is a commonly used breakout board that allows microcontrollers (like Arduino, ESP32, STM32, etc.) to communicate using the RS-485 communication standard, which is designed for long-distance and noise-resistant data transmission.

✅ Key Features:

• Chipset: MAX485 (Low-power RS-485 transceiver from Maxim Integrated)

• Voltage: Typically 5V logic and power (some versions may support 3.3V)

• Communication: Half-duplex (you can transmit or receive at a time, not both simultaneously)

• Supports multiple nodes: You can connect up to 32 devices on the same RS-485 bus

• Distance: Communication up to 1.2 km (with suitable cabling and conditions)

???? Pinout:

???? Basic Wiring with Arduino (Example):

MAX485 Module       Arduino
-------------       -------
VCC                 5V
GND                 GND
RO                  D2 (RX)
DI                  D3 (TX)
RE & DE             D4 (Control Direction)
A                   To RS-485 bus A line
B                   To RS-485 bus B line

To switch between transmit and receive:

#define RE_DE 4
void setup() {
  pinMode(RE_DE, OUTPUT);
  digitalWrite(RE_DE, LOW); // Receive mode
}

void sendData() {
  digitalWrite(RE_DE, HIGH); // Enable transmit
  Serial.write("Hello");
  delay(10); // Give time to send
  digitalWrite(RE_DE, LOW); // Back to receive
}

????️ Use Cases:

• Industrial automation

• Long-distance sensor networks

• Home automation (Modbus communication)

• Interfacing Arduino devices over long distances
