LM35D Precision Analog Temperature Sensor Module

Accurately monitor ambient and surface temperatures with the LM35D Precision Analog Temperature Sensor Module. Centered around the widely trusted Texas Instruments LM35D integrated-circuit sensor, this module provides an analog voltage output directly proportional to the temperature in degrees Celsius ( $10 ext{mV/}^circ ext{C}$ ). Unlike thermistors that require complex non-linear calibration equations, the LM35D is linearly calibrated, requiring no external conversion setup. Powered by $4 ext{V}$ to $30 ext{V DC}$ , it is the perfect solution for microcontrollers like Arduino, ESP32, and Raspberry Pi in environmental monitoring and thermal management projects.

( No Reviews )

₹ 95 ^{₹ 149}

Order From Whatsapp

Seller Electro Boat

Tags LM35D Temperature Sensor LM35 Analog Temp Module Linear Temperature Sensor Arduino LM35 Precision Sensor Centigrade Temp Sensor Module LM35 Precision Linear Module

No Cancellation

No Returnable

Product Details :

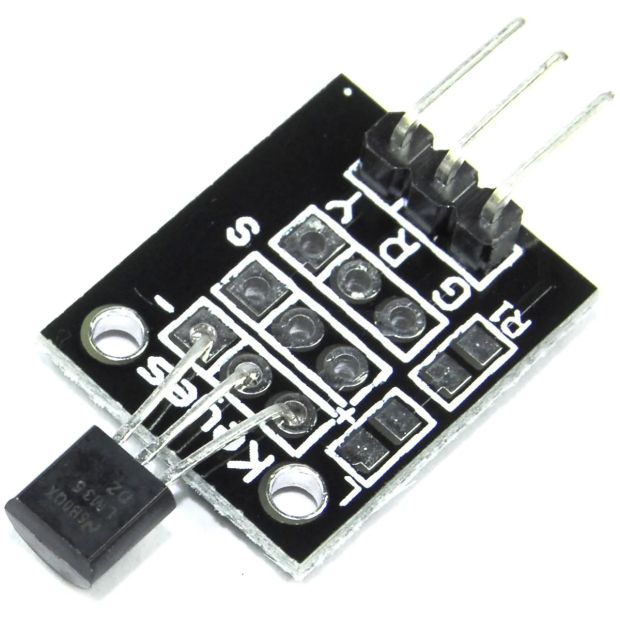

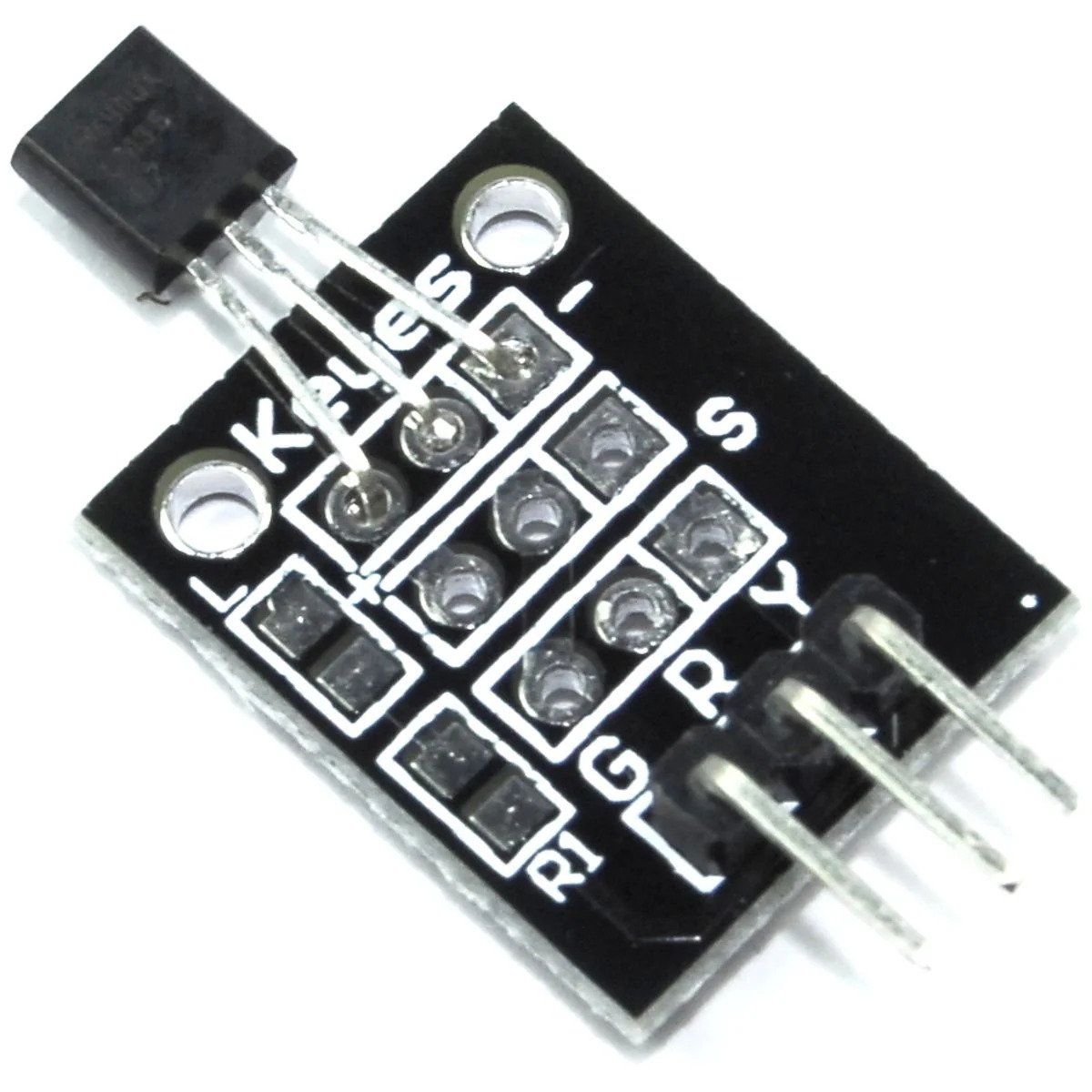

The LM35D Analog Temperature Sensor Module is a high-precision integrated-circuit temperature sensing board designed to measure temperature directly in degrees Celsius. Because the output voltage is linearly proportional to the Centigrade scale ( $10 ext{ mV per } 1^circ ext{C}$ ), developers can easily convert analog readings into temperature without needing complex mathematical lookup tables or logarithmic Steinhart-Hart formulas.

The LM35D operates with low self-heating (less than $0.08^circ ext{C}$ in still air) to maintain accurate environment readings. Onboard decoupling capacitors ensure stable power supply filtering, reducing signal noise on the analog output line. The module features a simple 3-pin interface ( $V_{CC}$ , $GND$ , and $OUT$ ), making it ideal for rapid prototyping with development boards.

Key Features and Benefits

Direct Linear Scale Calibration: Factory-calibrated directly in degrees Celsius with a linear factor of $+10.0 ext{ mV/}^circ ext{C}$ .
Low Self-Heating Effect: Draws less than $60 mu ext{A}$ , preventing internal power dissipation from distorting temperature readings.
Wide Voltage Supply Compatibility: Operates smoothly across a broad supply range from $4 ext{V DC}$ up to $30 ext{V DC}$ .
Plug-and-Play 3-Pin Header: Easy connections using standard DuPont jumper cables directly to ADC input pins.
Onboard Power Decoupling: Includes bypass capacitors on the module PCB to minimize power rail noise and stabilize output readings.

Technical Specifications

Feature Component	Specification Details
Sensor IC	Texas Instruments LM35D
Measurement Range	$0^circ ext{C to } +100^circ ext{C}$
Accuracy	$pm 0.6^circ ext{C}$ (at $+25^circ ext{C}$ typical)
Scale Factor	$+10.0 ext{ mV/}^circ ext{C}$
Operating Voltage ( $V_{CC}$ )	$4.0 ext{V DC to } 30.0 ext{V DC}$
Current Consumption	$< 60 mu ext{A}$
Output Type	Analog Voltage ( $0 ext{V}$ at $0^circ ext{C}$ , $1.0 ext{V}$ at $100^circ ext{C}$ )
Output Impedance	$0.1 Omega$ for $1 ext{mA}$ load

Wiring & Output Calculation Guide

1. Pin Description:

Header Pin	Label	Function / Connection
VCC	Power Supply	Connect to $5 ext{V DC}$ (or $4 ext{V}-30 ext{V}$ )
OUT / SIG	Analog Signal Output	Connect to Microcontroller ADC Pin (e.g., A0 on Arduino)
GND	Ground	Connect to System / Microcontroller Common Ground ( $GND$ )

2. Conversion Formula:

To convert the analog voltage reading from your microcontroller's ADC into temperature in Celsius ( $^circ ext{C}$ ):

ext{Voltage (mV)} = rac{ ext{ADC Reading}}{ ext{ADC Resolution}} imes ext{Reference Voltage (mV)}

ext{Temperature }(^circ ext{C}) = rac{ ext{Voltage (mV)}}{10 ext{ mV/}^circ ext{C}}

Example (Arduino 10-bit ADC at 5V reference): If the ADC reading is $51$ :

$ext{Voltage} = rac{51}{1023} imes 5000 ext{ mV} pprox 249.2 ext{ mV}$

$ext{Temperature} = rac{249.2 ext{ mV}}{10 ext{ mV/}^circ ext{C}} = 24.92^circ ext{C}$

Applications

Environmental & Weather Stations: Room temperature tracking and ambient climate logging.
Battery & Power Supply Thermal Monitoring: Over-temperature protection for LiPo chargers and power supplies.
HVAC & Smart Home Systems: Thermostat regulation and fan speed control based on real-time temperature.
Educational STEM Experiments: Teaching analog-to-digital conversion concepts with microcontrollers.
