Detailed Description

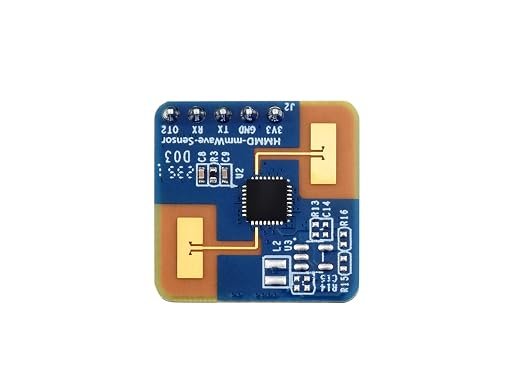

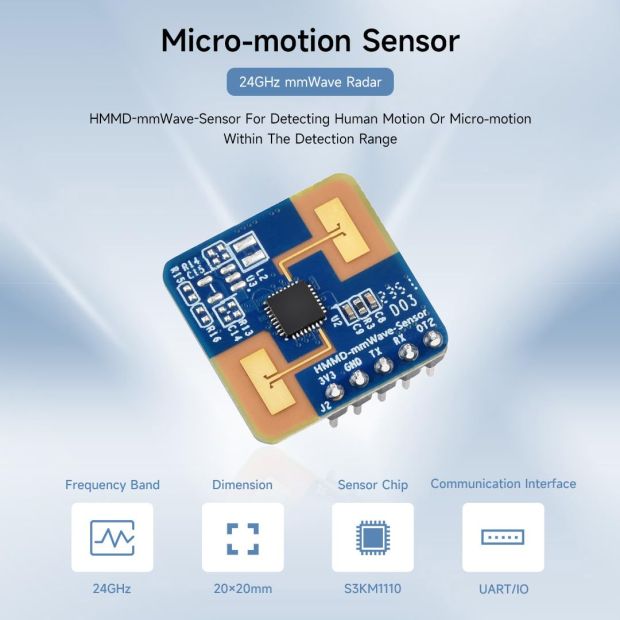

The  Human Micro-Motion Detection mmWave Sensor is an ultra-compact electronic breakout designed to solve the structural vulnerabilities of traditional Passive Infrared (PIR) modules. PIR sensors rely purely on reading thermal differentials, meaning they cannot detect a person who is sitting completely still or reading a book. The Waveshare HMMD module completely eliminates this blind spot by deploying industrial-grade millimeter-wave radar scanning technology powered by the specialized Silicon Micro AIoT S3KM1110 SoC.

Operating via Frequency Modulated Continuous Wave (FMCW) modulation, the module continuously radiates low-power 24GHz signals through its integrated onboard 1T1R (1 Transmit, 1 Receive) high-frequency antenna plane. Instead of simply looking for shifting ambient patterns, the radar registers tiny adjustments in wave phase shifts. The chip's local MCU runs advanced signal-processing algorithms to process these wave reflections. This allows it to identify subtle movements like chest expansions from breathing, enabling it to classify a target as moving, micro-moving, standing, or completely stationary with total privacy protection.

Key Features and Benefits

• Advanced S3KM1110 FMCW Silicon Engine: Continuously tracks moving, slow-swaying, or completely static, motionless individuals without needing physical movement to stay triggered.

• Granular Multi-Gate Range Masking: Supports individual sensitivity configurations across independent distance windows via simple UART register commands to eliminate false triggers from background objects like wind-blown curtains.

• Dual Interface Hardware Channels: Outputs a basic Active-High presence state trigger through its standard GPIO output pin, while simultaneously streaming detailed distance statistics across a 115200-baud UART port.

• Flexible Mounting Mechanics: Supports ceiling-mounted arrays for close-proximity downward scanning or wall-mounted integration for extended front-facing surveillance fields.

• Broad Development Board Support: Includes rich online support documentation, sample setup blocks, and initialization demos for Raspberry Pi, RP2040, Arduino, ESP32, and Jetson Nano platforms.

Technical Specifications

How to Configure & Wire

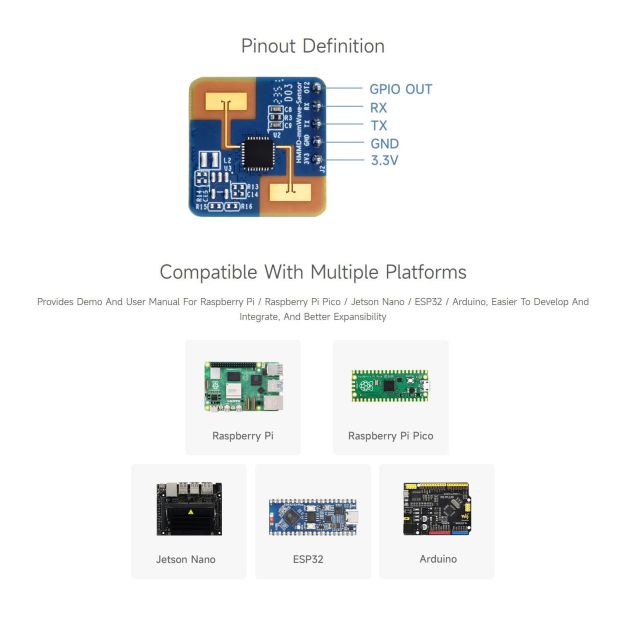

Module Pinout Identification:

• 3V3: Primary power input line. Requires a stable, filtered +3.3V DC supply line (±0.3V absolute threshold).

• GND: System ground reference.

• TX: Serial Data Out. Transmits calculated distance frames and human status packets to your microcontroller.

• RX: Serial Data In. Receives configuration parameters, sensing range limits, and sensitivity thresholds.

• GPIO_OUT: Digital presence flag pin. Drives High immediately when human activity or presence is recognized; drops Low during prolonged absence states.

Quick Setup Prototyping Steps:

1. Connect the module’s 3V3 pin to the 3.3V power rail of your development board, and wire GND to the common ground rail.

2. Wire the module's TX pin to your microcontroller's serial receive line (e.g., ESP32 RX2 / GPIO 16), and attach the module's RX pin to the corresponding serial transmit line (e.g., ESP32 TX2 / GPIO 17).

3. If you just want a simple trigger without parsing data streams, you can run the GPIO_OUT pin directly into any digital input pin on an Arduino or ESP32 and read it exactly like a classic PIR motion sensor.

4. Upload the sample code block below to read the continuous incoming UART telemetry packets from the sensor:

#include

// Initialize the secondary hardware serial port for ESP32 boards
HardwareSerial RadarSerial(2); // RX2 = GPIO 16, TX2 = GPIO 17

void setup() {
  Serial.begin(115200);      // Open standard USB debug stream at 115200 bps
  delay(500);
  Serial.println("Initializing Waveshare 24GHz HMMD Radar Interface...");

  // Start serial communication with the S3KM1110 sensor board
  RadarSerial.begin(115200, SERIAL_8N1, 16, 17);
  Serial.println("Radar Data Stream Online. Parsing data arrays...");
}

void loop() {
  // Read and mirror raw radar sensor configuration packets to the serial monitor
  if (RadarSerial.available()) {
    while (RadarSerial.available()) {
      uint8_t incomingByte = RadarSerial.read();

      // Print incoming values in hexadecimal format for clean data frame identification
      if (incomingByte < 0x10) Serial.print("0");
      Serial.print(incomingByte, HEX);
      Serial.print(" ");
    }
    Serial.println(); // Line break for next incoming telemetry frame
  }
  delay(100); // 100ms processing loop cycle pace
}

Applications

• Advanced Smart Home Automation: Links with smart home platforms like Home Assistant to keep room lighting and climate control active as long as someone is reading or working inside.

• Intelligent Commercial Security Nodes: Monitors secure indoor facilities after hours, flagging intruders who try to avoid detection by standing perfectly still.

• Energy-Efficient Smart Kiosks: Automatically awakens interactive video displays or ATMs when a user approaches, dropping back into a low-power standby mode during quiet periods.

• Intelligent Lighting Control: Operates public fixtures or office meeting rooms efficiently by ensuring lights remain active only when real presence is verified.

Package Includes

• 1 x  Human Micro-Motion Detection mmWave Sensor Breakout Module
