Detailed Description:

The F550 DIY Hexacopter Kit is an all-in-one solution to build your own aerial photography or FPV drone. It includes a strong hexagonal F550 frame, six A2212 1000KV brushless motors, six 30A ESCs, and all the accessories required for motor and propeller mounting.

It supports a wide range of flight controllers (KK2.1.5, APM, Naza, Pixhawk) and can lift GoPro-style action cameras or lightweight gimbals, making it a perfect platform for custom flight systems, mapping, surveying, or aerial filming.

Key Features:

• Durable F550 flamewheel-style frame (ABS/nylon reinforced arms)

• 6 × A2212 1000KV brushless motors

• 6 × 30A ESCs (SimonK or BLHeli firmware)

• Supports KK2.1.5, APM, NAZA, or Pixhawk controllers

• Supports GPS, gimbal, FPV camera modules

• Hexacopter offers more stability and lift than quadcopters

• Suitable for aerial photography, long-range flying, and payload testing

Technical Specifications:

How to Use:

1. Assemble the F550 frame and arms

2. Mount the motors and ESCs with screws and solder connections

3. Connect to your preferred flight controller (KK2, APM, Pixhawk, etc.)

4. Calibrate using software like Mission Planner or QGroundControl

5. Install a LiPo battery and remote receiver

6. Perform a test flight in open space

7. Optionally add a gimbal, FPV camera, or GPS module

Applications:

• Aerial photography & videography

• FPV and hobby flying

• Robotics and drone development

• College and school drone projects

• Payload delivery testing

• Agricultural and land survey mapping

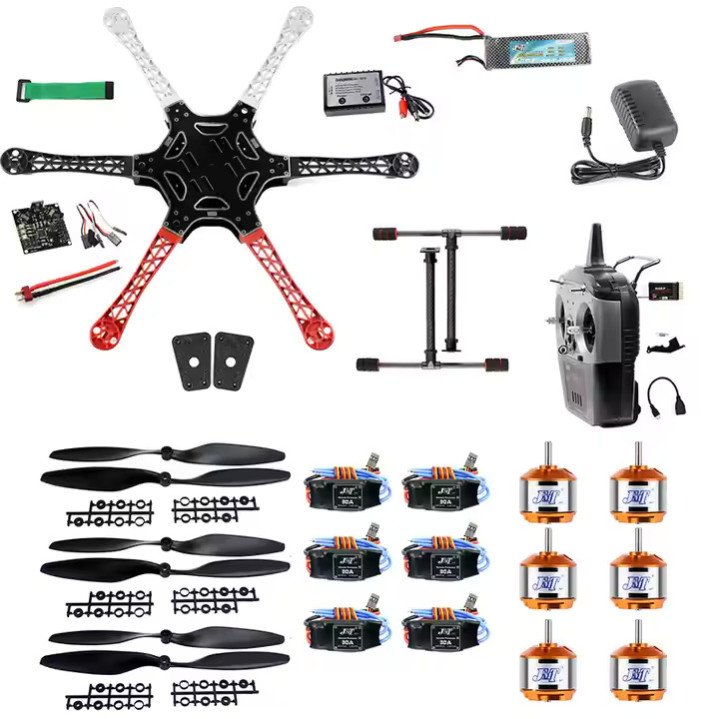

Package Includes:

• 1 × F550 Hexacopter Frame (Top & Bottom Plates + Arms)

• 6 × A2212 1000KV Brushless Motors

• 6 × 30A ESCs (Pre-programmed)

• 6 × 1045 Propeller Pairs (CW + CCW)

• 1 × Set of Mounting Screws and Accessories

Note:

• Battery, flight controller, transmitter, and receiver not included

• Assembly and calibration required before flight
