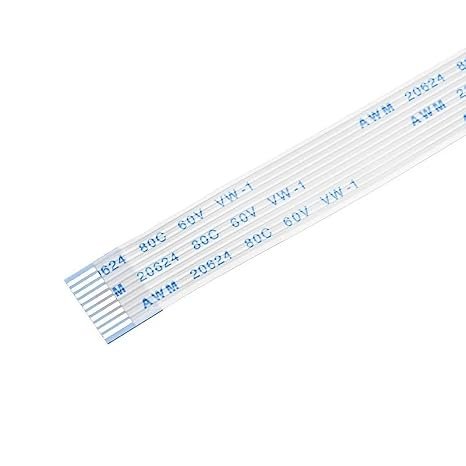

The DWIN 10-Pin 1.0mm Pitch FCC Connecting Line is an ultra-thin, highly flexible flat ribbon cable engineered specifically for DWIN Smart DGUS/LCM HMI LCD Displays. Featuring a precise 1.0mm pin pitch and 10 parallel conductors, this flexible flat cable (FFC/FCC) provides a reliable high-speed data and power connection between DWIN display screens, development boards, and programming adapters like the DWIN HDL662B USB-to-FCC adapter.

Both ends of the cable are reinforced with blue stiffener backing tape to ensure smooth insertion, secure latching, and strain relief inside ZIF/LIF surface-mount connectors. Whether you are flashing firmware, debugging UI layouts, or integrating DWIN touchscreens into compact enclosures, Electroboat Technologies provides genuine replacement display cables for your industrial and maker builds.

Key Features and Benefits

• Original DWIN Compatibility: Engineered for seamless fit with DWIN C-series and DGUS smart HMI screens.

• Ultra-Thin & Flexible: Fits into tight electronic housings and complex mechanical enclosures without stress.

• Reinforced Ends: Features stiffener backings on both connectors for easy insertion into 1.0mm ZIF sockets.

• Reliable Conductivity: High-grade tinned copper conductors prevent signal degradation and intermittent connections.

• Plug-and-Play Integration: Perfect for connecting screens to DWIN HDL662B USB adapters or custom carrier boards.

Technical Specifications

How to Use

1. Locate Connector Latch: Gently pull up or slide open the locking latch on the 10-pin 1.0mm ZIF/FFC socket of your DWIN display or HDL662B adapter board.

2. Insert Cable: Slide the 10-pin FCC cable straight into the terminal block with the blue stiffener side facing upward/outward as specified by your board layout.

3. Lock Latch: Push the connector latch down firmly to clamp the cable contacts in place.

4. Precaution: Avoid severe sharp folds or twisting the ribbon cable repeatedly in a tight radius to prevent inner trace damage.

Applications

• Interfacing DWIN DGUS / Smart LCD Modules with control boards

• Connecting DWIN screens to DWIN HDL662B USB debug adapters for PC programming

• Embedded industrial control panels and medical equipment UI screens

• Custom IoT smart display workstations and prototype rigs

Package Includes

• 1 x DWIN 10-Pin 1.0mm Pitch FCC Connecting Line Cable (15cm)
