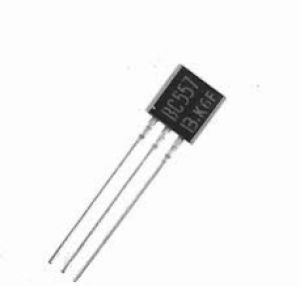

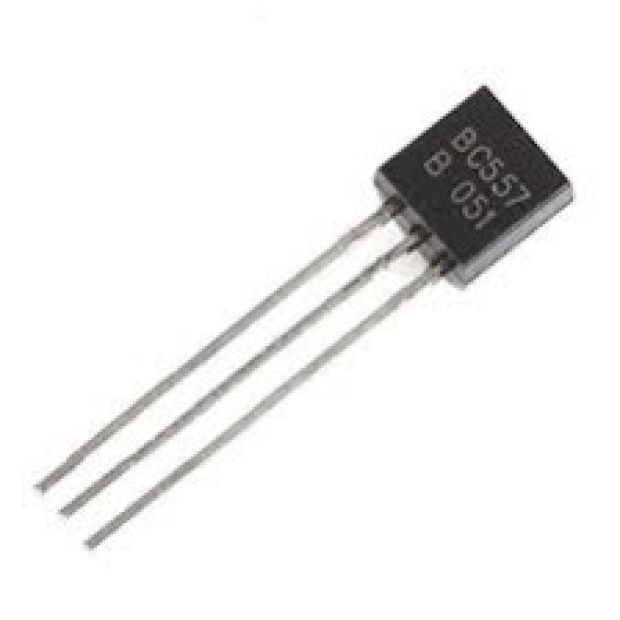

The BC557 is a PNP bipolar junction transistor (BJT) commonly used in low-power amplification and switching applications. It is the PNP counterpart to the BC547 (which is NPN), and they are often used in complementary circuits, where one is used for positive voltage switching (PNP) and the other for negative voltage switching (NPN).

Key Features of the BC557:

1. Type: PNP transistor (This means current flows from the emitter to the collector, unlike an NPN transistor where current flows from the collector to the emitter).
2. Package: Typically comes in a TO-92 package, which is a small 3-pin package.
3. Maximum Collector-Emitter Voltage (Vce): 45V (the maximum voltage that can be applied between the collector and emitter).
4. Maximum Collector Current (Ic): 100mA (the maximum current that can flow through the collector without damaging the transistor).
5. Power Dissipation (Ptot): 500mW (maximum power the transistor can dissipate without overheating).
6. DC Current Gain (hFE): Typically 110 to 800 (a measure of how much the transistor amplifies the base current).

Pin Configuration (TO-92 package):

• Pin 1 (Emitter): The emitter is connected to the positive side of the power supply (for a PNP transistor).
• Pin 2 (Base): The base controls the current flowing between the collector and emitter. It's the input terminal.
• Pin 3 (Collector): The collector is where the output current flows and is typically connected to the load in a circuit.

Common Applications of the BC557:

1. Amplification: The BC557 is often used to amplify small signals, such as in audio amplifiers or other signal processing circuits.

2. Switching: It is used in switching applications, for example, turning on or off devices like LEDs, relays, or small motors. A small current at the base allows a larger current to flow from the emitter to the collector.

3. Complementary Push-Pull Circuits: When combined with an NPN transistor (such as the BC547), the BC557 is used in push-pull amplifier circuits. This configuration allows higher power efficiency and better output drive for high-current loads.

4. Biasing Circuits: In analog circuits, the BC557 is used to bias transistors in amplifier circuits or to set operating points in other parts of the circuit.

5. Low-Power Switching: It is used for switching applications in low-power circuits, such as controlling a low-power load like a small relay or LED.

How the BC557 Works:

• Base Current: In a PNP transistor like the BC557, a small current flowing out of the base allows a larger current to flow from the emitter to the collector.
  • To turn the transistor on, the base must be more negative than the emitter. A negative voltage applied to the base relative to the emitter allows current to flow between the emitter and collector.
• Amplification: The BC557 amplifies the small base current, controlling a much larger current between the emitter and collector. This is the core principle of BJTs, where a small current at the base can control a larger current at the collector.

Example Circuits Using BC557:

1. Switching LED:
   • The BC557 can be used to switch an LED on and off. When a small negative voltage is applied to the base, the current from the emitter (positive side) flows through the collector and illuminates the LED.
2. Amplifier Circuit:
   • In an audio amplifier or a small signal amplifier, the BC557 can be used to amplify weak signals. The transistor boosts the input signal from the base to a stronger output at the collector.

Differences Between BC547 (NPN) and BC557 (PNP):

• Polarity: The BC547 is an NPN transistor, while the BC557 is a PNP transistor. In an NPN transistor, the current flows from the collector to the emitter, whereas in a PNP transistor (BC557), current flows from the emitter to the collector.
• Base Control: For the BC547 (NPN), a positive base voltage is required to turn it on. In contrast, for the BC557 (PNP), a negative base voltage is required to turn it on.

Limitations:

1. Low Current Handling: The BC557 can handle only up to 100mA of collector current, which limits its use in high-power applications.
2. Power Dissipation: With a 500mW power dissipation limit, it is not suitable for high-power circuits.
3. Voltage Rating: The maximum collector-emitter voltage of 45V limits its use in high-voltage circuits.

Conclusion:

The BC557 is a PNP transistor that is widely used for low-power amplification, switching applications, and in complementary push-pull circuits. It is suitable for small signal amplification and can be used for switching tasks in low-power circuits, controlling devices such as LEDs, small relays, or motors. It’s an ideal transistor for applications requiring moderate current handling, typically in signal processing and low-power control.
