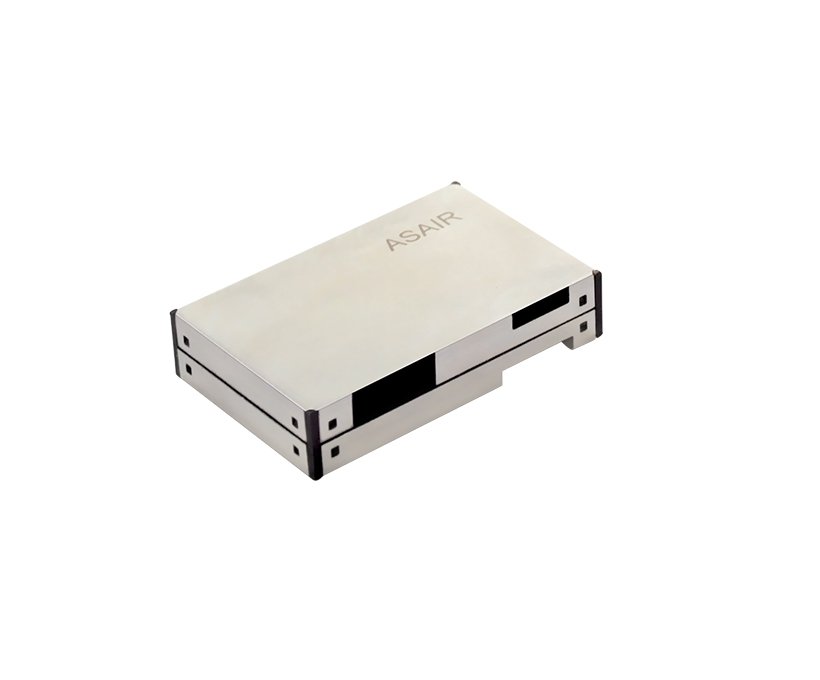

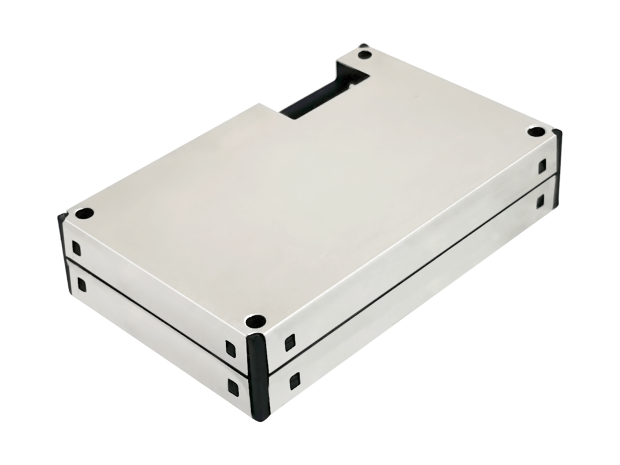

ASAIR APM10 High-Precision Digital Laser PM2.5 Particle Detection Sensor Module

Upgrade your air quality monitoring with the ultra-slim ASAIR APM10 Laser Particle Detection Sensor Module. Built on advanced laser scattering principles and Mie scattering theory, this compact sensor accurately tracks particulate matter down to a microscopic 0.3 microns. Featuring a robust, fully enclosed metal shield to block electromagnetic interference (EMI) and native laser self-calibration technology, it simultaneously tracks real-time PM1.0, PM2.5, and PM10 concentrations. Supporting flexible UART, I2C, and PWM digital outputs, it seamlessly integrates into air purifiers, smart HVAC units, and IoT environmental telemetry grids.

( No Reviews )

₹ 798 ^{₹ 949}

Order From Whatsapp

Seller Electro Boat

Tags ASAIR APM10 Laser PM2.5 Sensor Aosong APM10 Digital Particle Counter Dust Sensor Module APM10 Arduino I2C PM2.5 Sensor UART Air Quality Sensor Smart HVAC Dust Sensor

No Cancellation

No Returnable

Product Details :

Detailed Description

The ASAIR APM10 Digital Laser Particle Detection Sensor Module is a professional-grade, highly reliable air quality tracking engine designed by Aosong (ASAIR). While conventional infrared optical dust sensors rely on light-convection models that struggle with fine accuracy and experience swift calibration drift, the APM10 uses precise laser scattering technology. This guarantees quick, linear, and highly repeatable data collection, making it ideal for tracking urban smog, combustion smoke, and indoor dust concentrations.

The sensor operates by drawing air through an internal duct layout. Inside, a high-stability laser emitter and a responsive light detection element are cross-placed to capture real-time light scattering maps. As suspended particulate matter interrupts the laser beam, the scattered light intensity changes. An onboard microprocessor applies Mie scattering mathematical theory to calculate equivalent particle diameters and count the number of particles per unit volume. The module then converts this information into clean, high-resolution digital values ( $mu ext{g/m}^3$ ). To maintain accuracy over its long service life, the APM10 includes an automated boot-up self-calibration protocol that compensates for environmental shifting.

Key Features and Benefits

Laser Scattering Precision: Counts ultra-fine airborne particulate profiles with a minimum detection resolution of 0.3 microns.
Boot-Up Self-Calibration: Built-in software automatically matches internal optics to baseline fresh air values upon power-up, preventing measurement drift over time.
Triple digital Output Protocol: Offers highly adaptable connectivity, supporting UART Serial (1200 bps), I2C interface logic, and a dedicated PWM output rail.
Full Metal Shielding: Wrapped in a robust, grounding-capable metal shell that provides excellent resistance against ambient electromagnetic interference (EMI).
Ultra-Thin Profile: At only 10.8mm thick, its slim profile makes it easy to integrate into wall-mounted smart thermostats, handheld air monitors, or compact appliances.

Technical Specifications

Feature Component	Specification Details
Core Sensor Engine	ASAIR / Aosong APM10 (Laser Particulate Array Series)
Measurement Parameters	PM1.0, PM2.5, PM10 Concentrations (μ $mu ext{g/m}^3$ )
Particle Size Tracking Range	$0.3 mu ext{m} ext{ to } 10 mu ext{m}$ (Microns)
Concentration Metric Bounds	$0 ext{ to } 1000 mu ext{g/m}^3$
PM2.5 Accuracy Tolerance	$pm15 mu ext{g/m}^3$ ( $0 ext{-}100 mu ext{g/m}^3$ ) \| ± $$pm15$ M.V. ( $$100 ext{-}1000 mu ext{g/m}^$ )
Data Stream Refresh Frequency	$1.0 ext{ Second}$ continuous sweeps
Operating Voltage Supply	$4.75 ext{V}$ to $5.25 ext{V}$ DC ( $5.0 ext{V}$ Typical Regulated Rail)
Active Loop Current Draw	$50 ext{ mA}$ Typical \| Up to $$100 ext{ mA$ Peak operation
Standby Idle Current	$le 10 ext{ mA}$
Interface Communications	UART Serial ( $1200 ext{ bps}$ ), I2C Interface ( $0x08$ 7-bit addr), PWM
Estimated Functional Lifetime	$> 3 ext{ Years}$ under normal ambient environments
Environmental Operations	Temperature: $-10^circ ext{C}$ to $+50^circ ext{C}$ \| Humidity: ≤ $$le 95% ext{ RH$

How to Configure & Wire

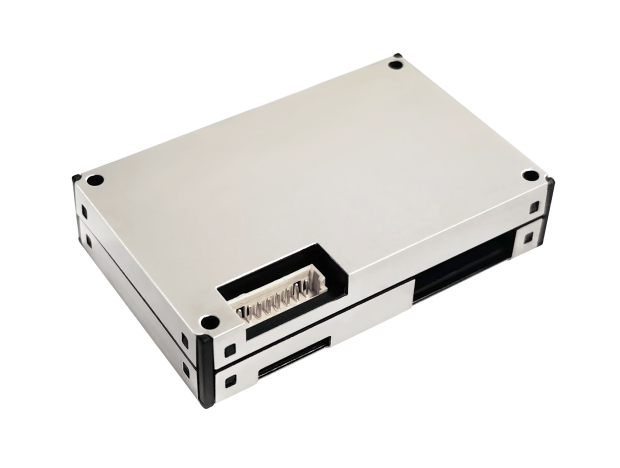

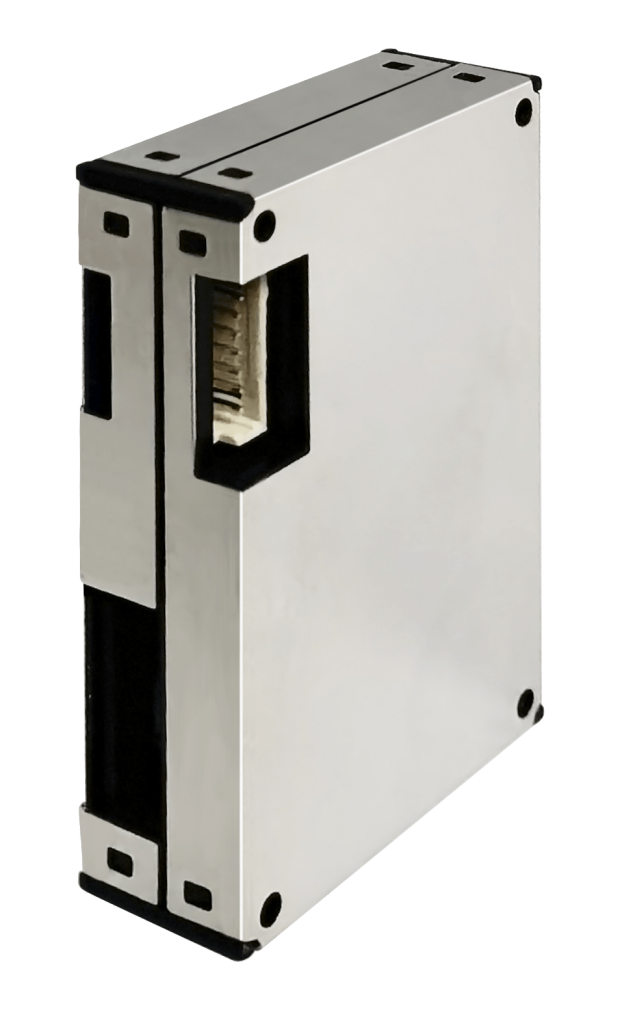

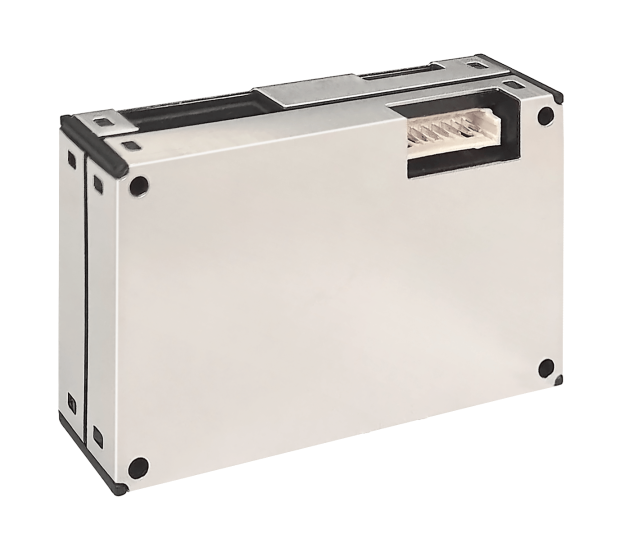

8-Pin Interface Connector Layout (MX1.25-8Y Pitch Connector):

Pin 1 (VCC): Main power supply input ( $+5 ext{V DC}$ stable input).
Pin 2 (GND): Common system ground loop.
Pin 3 (SET): Interface Protocol Selector. Leave open/float or pull High to choose UART mode; pull to Ground to choose I2C mode.
Pin 4 (RX/SDA): UART Receive Line / I2C Serial Data line.
Pin 5 (TX/SCL): UART Transmit Line / I2C Serial Clock line.
Pins 6 & 7 (NC): No Connection.
Pin 8 (PWM): Standalone Pulse-Width Modulation output pin for independent concentration readings.

Quick Setup Prototyping Steps (UART Protocol Default):

Connect VCC (Pin 1) to your microcontroller's 5V pin, and GND (Pin 2) to the common system ground.
Leave Pin 3 (SET) disconnected to tell the sensor to use its UART interface protocol (running at a fixed 1200 bps baud rate).
Connect the sensor's TX (Pin 5) to your microcontroller's serial receive pin (e.g., Arduino Pin 2 via SoftwareSerial). Connect the sensor's RX (Pin 4) to your serial transmit pin (e.g., Arduino Pin 3).
In your code, implement a 1200 bps serial listener loop. The sensor continuously pushes hex packets wrapped with a standard frame header (0xFE 0xA5). Parse the incoming data bytes using the formula below to extract real-world concentration values:

$ext{PM2.5 Value } (mu ext{g/m}^3) = ( ext{Data Byte 1} imes 256) + ext{Data Byte 2}$

Applications

IoT Smart Air Purifiers: Embedded within residential air filtering appliances to dynamically scale up fan velocities when fine dust indexes rise.
Building Automation HVAC Loops: Monitors incoming fresh-air duct lines in office spaces, closing external dampers during heavy regional urban smog events.
Smart Air Conditioners: Integrates into modern split or ducted AC systems to track and report indoor airborne dust profiles.
Portable Air Quality Handhelds: Low power consumption and slim depth profile make it ideal for pocket-sized occupational safety meters.
