Product Description (Detailed):

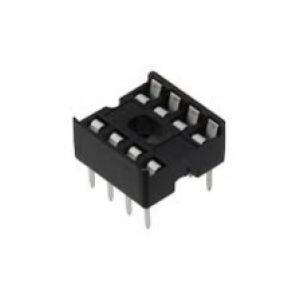

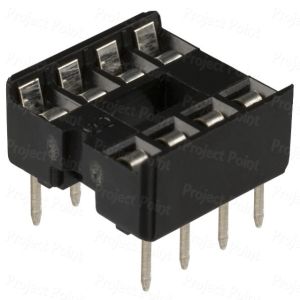

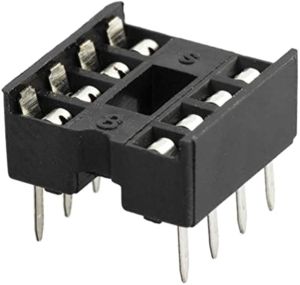

Protect your valuable integrated circuits and simplify your electronic prototyping and repair processes with our essential 8-Pin IC Socket / IC Base. This widely used DIP (Dual In-line Package) socket is a fundamental component for any electronics enthusiast, student, or professional working with through-hole ICs. Designed to securely hold 8-pin DIP integrated circuits, it provides a reliable and convenient method for mounting and easily replacing ICs without the need for direct soldering to the PCB.

The primary advantage of using an 8-pin IC socket is protection against soldering heat damage. By soldering the socket to your circuit board first, you can then gently insert the IC into the socket, safeguarding it from the high temperatures of soldering that can potentially degrade or destroy sensitive components. Furthermore, these sockets facilitate easy removal and insertion of ICs, making them indispensable for:

• Prototyping and testing: Quickly swap out different ICs or debug circuits without desoldering.

• Upgradability and serviceability: Easily replace faulty ICs in the field or upgrade to new versions.



• Programmed ICs: For microcontrollers or memory chips that need to be removed for programming.

Our 8-pin DIP socket features the standard 2.54mm (0.1 inch) pin pitch and 7.62mm (0.3 inch) row spacing, ensuring perfect compatibility with common 8-pin DIP ICs like operational amplifiers (e.g., LM741), 555 timers, and small microcontrollers. Constructed from durable thermoplastic with reliable tin-plated phosphor bronze contacts, these sockets ensure excellent electrical conductivity and mechanical stability. Whether you're assembling a complex circuit, conducting educational experiments, or performing repairs, the 8-Pin IC Socket / IC Base is an indispensable tool for enhancing convenience, protecting components, and extending the lifespan of your electronic projects.

This 8-pin IC socket (also known as IC base) is designed for use with standard 8-pin DIP ICs. It allows easy installation and removal of integrated circuits without soldering the IC directly to the board, which is especially useful for frequent prototyping, upgrading, or replacing components.

The socket provides a firm grip with reliable conductivity, ensuring stable operation even in long-term projects or rugged conditions. It's widely used in Arduino circuits, breadboard setups, embedded development boards, and general electronics repair.

Key Features:

• 8-pin dual inline package (DIP) socket

• Prevents IC overheating during soldering

• Easy insertion/removal of ICs in prototyping and testing

• Perfect for 555 timer IC, LM358, LM393, ATtiny85, and op-amps

• Suitable for breadboards and PCB mounting

• Standard 2.54mm (0.1 inch) pin spacing

• Durable phosphor bronze or tin-plated contacts

Technical Specifications:

How to Use:

1. Solder the IC socket onto the PCB instead of the actual IC.

2. After soldering, insert the 8-pin DIP IC into the socket.

3. If the IC needs to be changed or tested, simply remove it from the socket without desoldering.

Great for IC protection, reducing heat exposure, and modular testing.

Applications:

• Arduino & microcontroller circuits (for ATtiny85, sensors, etc.)

• 555 timer circuits (astable/monostable)

• Op-amp and comparator IC projects

• Educational kits and prototyping boards

• DIY electronics and circuit repair

• Robotics and automation systems

Package Includes:

• 1 × 8-Pin IC Socket/Base
