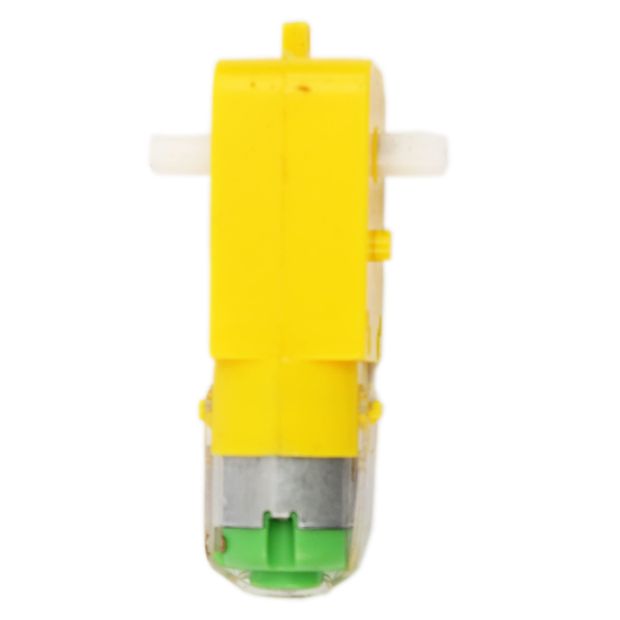

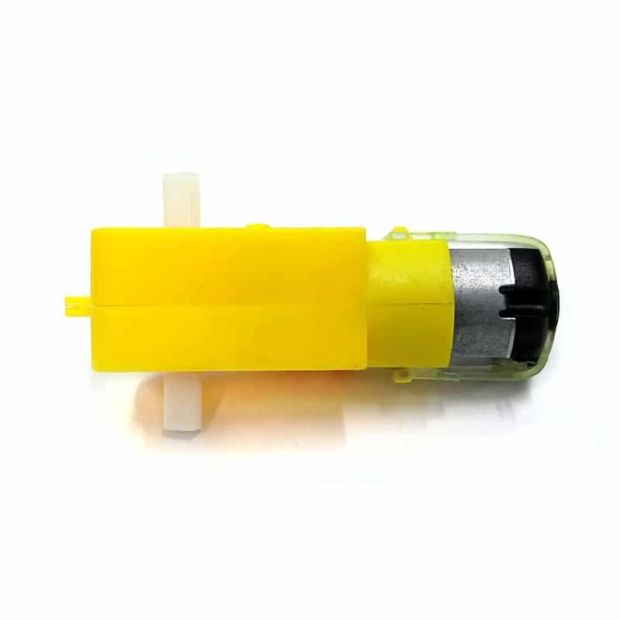

The BO Motor Dual Shaft - Straight is a type of DC motor commonly used in various robotics, automation, and DIY electronics projects. Its dual shaft configuration allows for more flexible design options, making it suitable for applications where you need to drive two different components simultaneously or for more complex mechanical designs.

Key Features of the BO Motor Dual Shaft - Straight:

1. Dual Shaft Design:

   • The dual shaft configuration is one of the key features of this motor. It has two output shafts, one on each side of the motor. This allows the motor to drive two separate components or wheels simultaneously.
   • The straight shafts typically come with a standard diameter and length, making them easy to connect to gears, pulleys, wheels, or other mechanical components.

2. Motor Type:

   • The BO motor is a DC motor, meaning it runs on direct current (DC) power. It's typically used in small-to-medium mechanical projects, robotics, and other devices requiring low-to-moderate torque and speed.

3. Voltage and Speed:

   • The motor typically operates at a 6V or 12V DC, but this can vary depending on the specific model.
   • Speed varies based on the voltage supplied to the motor but generally operates within a range of 100 to 500 RPM (revolutions per minute), depending on the model and load. This makes it suitable for projects requiring moderate speed and torque.

4. Torque:

   • The torque of the motor depends on the specific version and operating voltage, but DC motors like the BO motor generally provide a good balance of torque and speed, enough to power small devices like robot wheels, gear systems, and mechanical arms.

5. Applications of the Dual Shaft Design:

   • The dual shaft feature is especially useful for applications such as driving two wheels on a robot independently or simultaneously. You could also use it for steering mechanisms or simultaneous actuation of two components in a mechanism or system.

6. Mounting and Integration:

   • The motor is designed to fit easily into most small projects and can be mounted on frames, brackets, or bases. The dual shafts provide flexibility in connecting to various types of mechanical devices.
   • The straight shafts are typically designed for easy connection to gears, wheels, pulleys, or sprockets, often using screws or snap-fit adapters.

7. Size and Weight:

   • Typically, the BO motor with dual shafts is small and lightweight, making it ideal for applications where size and weight are important, such as mini robots, RC vehicles, or DIY toys.
   • The motor’s compact form factor allows it to be used in a variety of applications without adding significant bulk or weight.

8. Current Draw and Power Supply:

   • The current draw of the BO motor is usually modest, and it typically draws around 200mA to 500mA under load at 6V or 12V.
   • The motor can be powered with a standard 6V or 12V power supply or batteries, depending on the version.

Typical Applications:

1. Robotics:

   • The dual shaft feature makes this motor particularly useful for driving two wheels of a robot or a mechanical arm, where you need two output shafts to power two separate parts simultaneously. It is perfect for differential drive robots where two wheels are driven independently.

2. Miniature Vehicles:

   • In mini RC cars or other vehicles that require independent movement for multiple parts or wheels, the dual shaft design is ideal for powering both wheels simultaneously or separately, depending on the steering mechanism.

3. Automation:

   • The motor can be used in small automation systems where two different components or systems need to be powered at the same time. Examples include automated doors, small conveyors, or other actuators.

4. Toys:

   • Many DIY toys or robotic kits use motors like the BO motor to power simple movements. The dual shaft allows for easy integration into mechanical toys that require multiple points of motion.

5. Mechanical Systems:

   • The dual shaft can be used to drive two parts of a mechanical system in parallel, such as in gearing systems, where two connected gears need to rotate together or at different speeds.

How to Use the BO Motor Dual Shaft - Straight:

1. Connecting Power:

   • Typically, you can connect the motor’s power terminals to a 6V or 12V battery pack or an appropriate DC power supply.
   • Ensure the power source matches the motor's voltage rating for optimal performance and to avoid damage.

2. Wiring and Control:

   • You can control the motor using an Arduino, Raspberry Pi, or any microcontroller with a motor driver (such as L298N or L293D) to handle the power and control the direction.
   • For speed control, a PWM (Pulse Width Modulation) signal can be used to modulate the motor speed via the motor driver.

3. Mechanical Integration:

   • The dual shafts can be connected to wheels, gears, or other mechanical components using appropriate screws, couplings, or other attachment methods.

Example: Simple Arduino Motor Control Circuit for Dual Shaft Motor

Here’s a simple example of how you can use an Arduino and a motor driver (like L298N) to control the BO Motor Dual Shaft.

Components Needed:

• BO Motor Dual Shaft
• L298N Motor Driver
• Arduino (Uno, Nano, etc.)
• 6V or 12V Power Source
• Jumper wires
• Wheels, gears, or mechanical components

Circuit Setup:

1. Connect the Motor A terminals (on the L298N motor driver) to the two terminals of the BO Motor.
2. Connect EN1 pin on the L298N to 5V (for enabling the motor).
3. Connect IN1 and IN2 pins on the L298N to two digital pins on the Arduino (for controlling motor direction).
4. Connect VCC and GND to an appropriate 6V or 12V power supply.
5. Connect Arduino GND to the L298N GND.
6.

code:

// Define the motor control pins
int motorPin1 = 3;   // L298N IN1
int motorPin2 = 4;   // L298N IN2

void setup() {
  // Set the motor control pins as output
  pinMode(motorPin1, OUTPUT);
  pinMode(motorPin2, OUTPUT);
}

void loop() {
  // Motor forward
  digitalWrite(motorPin1, HIGH);
  digitalWrite(motorPin2, LOW);

  delay(2000); // Motor runs forward for 2 seconds

  // Motor reverse
  digitalWrite(motorPin1, LOW);
  digitalWrite(motorPin2, HIGH);

  delay(2000); // Motor runs in reverse for 2 seconds
}

Conclusion:

The BO Motor Dual Shaft - Straight is a compact and versatile DC motor that offers flexibility in design, particularly for projects requiring multiple simultaneous motions. Its dual shaft design makes it ideal for driving two different components, such as wheels on a robot or multiple actuators in a system. This motor is commonly used in robotics, automation, miniature vehicles, and toys, providing moderate torque and speed for small-scale applications.
