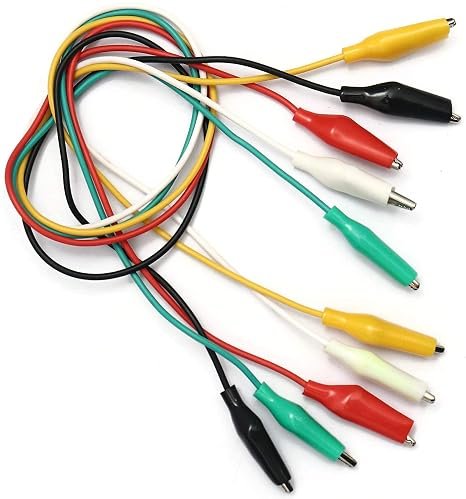

50cm Long Alligator Clip Test Leads Set (5 Colors, Heavy-Duty Electrical DIY Jumper Wires) for BBC Micro:bit, Arduino & Multimeters

Connect and prototype easily using the 50cm Long Alligator Clip Test Leads (5 Pieces Set). Perfect for BBC micro:bit, Arduino, Raspberry Pi, circuits testing, and multimeter measurements, these flexible jumper leads feature insulated alligator/crocodile clips at both ends. Measuring $50 ext{ cm}$ ( $19.7 ext{ inches}$ ) in length, each wire is sleeved in soft silicone/PVC insulation and color-coded (Red, Black, Yellow, Green, White) for hassle-free circuit troubleshooting and rapid hands-free electrical connections.

( No Reviews )

₹ 61 ^{₹ 97}

Order From Whatsapp

Seller Electro Boat

Tags 50cm Alligator Clips Microbit Alligator Test Leads Crocodile Clip Jumper Wires Electrical DIY Test Leads 5pcs Microbit Pin Connector Wires Alligator Clip Test Cables Multimeter Crocodile Test Leads

No Cancellation

No Returnable

Product Details :

The 50cm Long Alligator Clip Electrical DIY Test Lead Set (5 Pieces) is an indispensable quick-connect wiring solution for electronics laboratories, STEM classrooms, hobbyists, and maker projects. Specially suited for the edge connector pads of the BBC micro:bit, these double-ended crocodile clips allow students and developers to clip directly onto micro:bit pin holes (GND, 3V, Pin 0, Pin 1, Pin 2) without requiring soldering or pin headers.

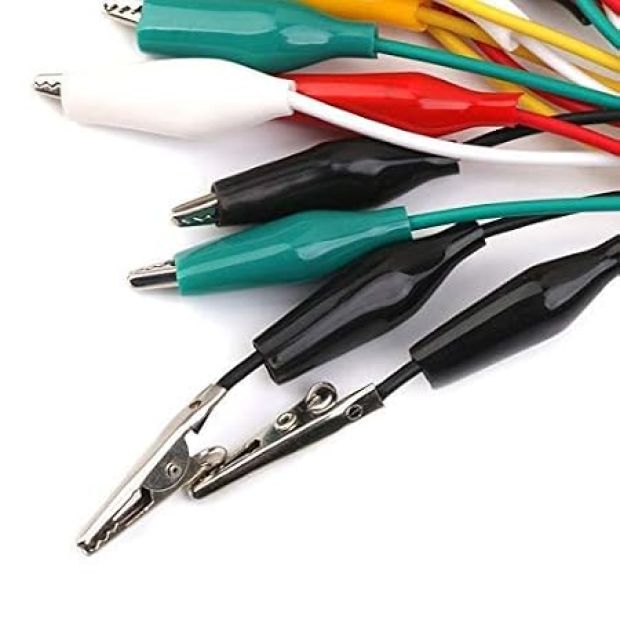

Each lead is constructed with a flexible 22 AWG multi-strand copper wire core wrapped in durable, flexible PVC insulation. Both ends are fitted with nickel-plated steel alligator clips protected by soft vinyl color-coded insulating boots. The strong spring action of the jaws ensures low-resistance, vibration-resistant electrical contact across component leads, battery terminals, circuit boards, and multimeter probes.

Key Features and Benefits

Ideal for BBC micro:bit & STEM Kits: Large clip jaws grab onto micro:bit edge rings, banana plugs, battery pack leads, and copper foil tapes effortlessly.
5 Distinct Color-Coded Wires: Includes Red, Black, Yellow, Green, and White leads to help keep circuit connections organized and prevent accidental short circuits.
Generous $50 ext{ cm}$ Length: Extended reach enables flexible desktop layout when testing components across breadboards and power supplies.
Strong Spring Action Jaws: Nickel-plated steel jaws open up to $10 ext{mm}$ and grip tightly onto component terminals for hands-free circuit testing.
Protective Insulating Boots: Flexible vinyl boots fully cover the metal clips to protect against accidental shorting when leads touch each other.

Technical Specifications

Feature Component	Specification Details
Lead Count	5 Pieces per Set (5 Different Colors)
Clip Type	Double-ended Heavy-Duty Crocodile / Alligator Clips
Wire Length	$50.0 ext{ cm} (pprox 19.7 ext{ inches})$
Conductor Core	Multi-strand Copper Wire ( $22 ext{ AWG}$ )
Insulation Material	Flexible Flame-Retardant PVC / Rubber Boots
Jaw Opening Width	Up to $10 ext{ mm}$ ( $0.39 ext{ inches}$ )
Max Voltage Rating	Up to $30 ext{V AC} / 60 ext{V DC}$ (Low-voltage testing)
Max Recommended Current	Up to $3 ext{A} - 5 ext{A}$ Continuous
Color Assortment	$1 imes$ Red, $1 imes$ Black, $1 imes$ Yellow, $1 imes$ Green, $1 imes$ White

Usage & Connection Guidelines

1. Color Standard Coding:

Wire Color	Standard Recommended Connection
Red	Positive Power Supply Rail ( $3.3 ext{V} / 5 ext{V} / V_{CC}$ )
Black	System Ground ( $GND$ )
Yellow / Green	Digital Input / Output Signals (e.g., Micro:bit Pin 0, Pin 1, Pin 2)
White	Analog Inputs, Sensors, or Piezo Speaker Connections

2. Micro:bit Connection Diagram:

   +----------------------------------------------------+
   |                   BBC micro:bit                    |
   |                                                    |
   |   [0]           [1]           [2]     [3V]  [GND]  |
   |    |             |             |       |      |    |
   +----+-------------+-------------+-------+------+----+
        |             |             |       |      |
     [Green]       [White]      [Yellow]  [Red]  [Black]
        |             |             |       |      |
        v             v             v       v      v
     Sensors       Buzzer        Servos   Power  Ground

SAFETY NOTICE: Recommended for low-voltage electronic circuits ( $< 60 ext{V DC}$ ) and low-current prototyping ( $< 5 ext{A}$ ). Do not connect these leads directly to AC mains electricity ( $110 ext{V}/230 ext{V}$ ) or high-current automobile battery short circuits.

Applications

BBC micro:bit Experiments: Connecting external sensors, buzzers, LEDs, headphone jacks, and motor drivers to micro:bit edge connector rings.
Breadboard & Circuit Troubleshooting: Rapid point-to-point electrical signal testing without soldering.
Battery & Power Supply Connections: Linking battery holders, solar panels, and DC power rails to test meters.
Interactive STEM Art & Makey-Makey: Connecting conductive play-dough, fruit, and graphite pencil drawings to touch sensors.
