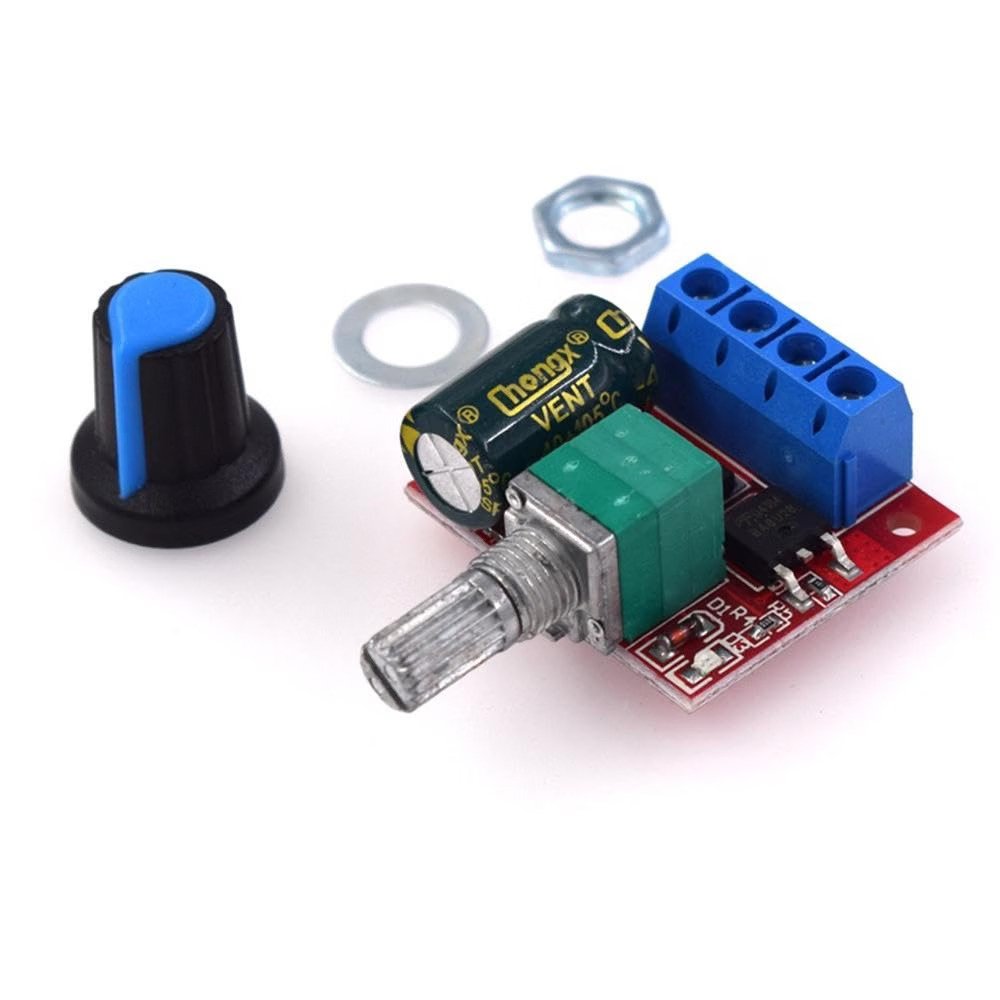

The Electroboat 4.5-35V 5A PWM DC Motor Speed Regulator Control Governor is an all-in-one solid-state motor speed control module engineered for high efficiency and smooth output control. Unlike simple linear resistive controllers that waste energy as heat, this module utilizes high-frequency Pulse-Width Modulation (PWM) to adjust the average supply current delivered to the load while maintaining full torque at low motor speeds.

Capable of driving continuous load currents up to 5A (with peak power delivery up to 90W), this module features an onboard potentiometer fitted with an integrated power switch—allowing you to turn the connected circuit completely OFF with a counter-clockwise click. It also incorporates a high-current self-recovery resettable fuse that automatically limits overcurrent faults, safeguarding both the module and connected DC equipment.

Key Features and Benefits

• Wide Operating Voltage Range (4.5V to 35V DC): Versatile support for standard 6V, 12V, 24V, and 30V DC motors and LED arrays.

• High Efficiency PWM Speed Regulation: Delivers duty cycle control from 1% to 100% with high energy conversion efficiency, maintaining torque at low speeds.

• Integrated ON/OFF Switch Knob: Multi-turn potentiometer includes a built-in tactile switch to cut off power completely without an external switch.

• Self-Recovery Resettable Fuse: Automatically disconnects during over-current or short-circuit events and resets once cooled down.

• Screw Terminal Connections: Heavy-duty terminal blocks ensure clean, tool-free wiring for DC power inputs and load outputs.

Technical Specifications

How to Use

1. Connect Power Input: Connect your DC power supply (4.5V to 35V DC) to the Power + and Power - screw terminals.

2. Connect Load Output: Wire your DC motor, pump, fan, or LED array directly across the Motor + and Motor - output screw terminals.

3. Speed & Power Regulation:

   • Rotate the potentiometer knob clockwise past the tactile "click" to turn on the module.

   • Continue turning clockwise to gradually increase motor speed or LED brightness from 1% to 100%.

   • Rotate fully counter-clockwise until it "clicks" to shut off power to the load completely.

4. Direction Reversal: To reverse the rotation direction of a connected DC motor, simply swap the Motor + and Motor - wire positions.

Applications

• Speed Regulation for 6V / 12V / 24V DC Motors, Drills, Fans, and Pumps

• High-Brightness DC LED Strip & Bulb Dimming

• Custom HHO Generators & DC Heater Element Control

• Conveyor Belt, Model Train, and Automated Robotics Speed Control

• DIY Lab Power Supply Current & Load Regulation

Package Includes

• 1 x 4.5-35V 5A PWM Adjustable DC Motor Speed Regulator Control Governor Switch Module
