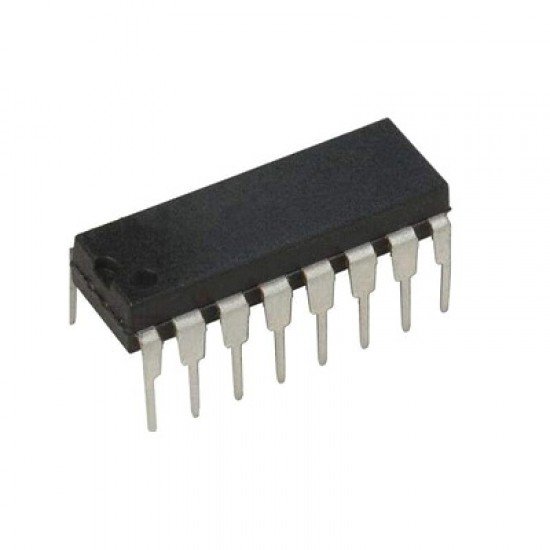

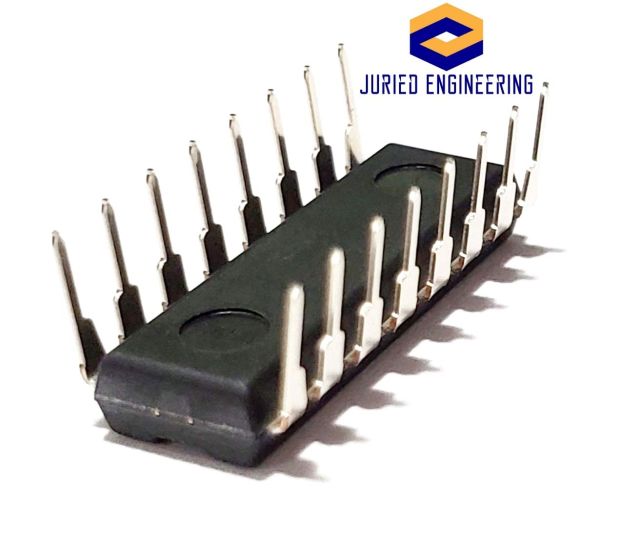

4026 IC
The CD4026 IC is a popular CMOS Decade Counter and 7-Segment Display Driver IC widely used in digital counting and display applications. It is ideal for electronics projects, DIY kits, Arduino interfacing, digital counters, timer circuits, robotics, final year projects, mini projects, and research applications.
The CD4026 combines a Johnson decade counter and a 7-segment decoder driver in a single IC, allowing direct interfacing with common cathode 7-segment displays without requiring additional decoder ICs. It counts from 0 to 9 and automatically drives the corresponding display segments.
₹ 30
₹ 41
| : |
The CD4026 decade counter IC is perfect for creating digital displays, timers, counters, and frequency divider circuits with minimal external components.
Compatible with 7-segment displays, Arduino clock pulse generation, 555 timer circuits, and embedded electronics, this IC is widely used by students, hobbyists, and electronics developers.
Key Features
- Decade counter with 7-segment decoder
- Directly drives common cathode displays
- Counts from 0 to 9
- Wide operating voltage range
- Clock inhibit and reset functions
- Carry-out for cascading counters
- Low power CMOS technology
- Suitable for digital display applications
Technical Specifications
| Parameter | Specification |
|---|---|
| IC Model | CD4026 |
| Type | Decade Counter / 7-Segment Driver |
| Operating Voltage | 3V – 18V |
| Counter Type | Johnson Decade Counter |
| Display Support | Common Cathode 7-Segment |
| Package Type | DIP-16 |
| Frequency | Up to ~6MHz at 10V |
| Logic Family | CMOS 4000 Series |
