Detailed Description:

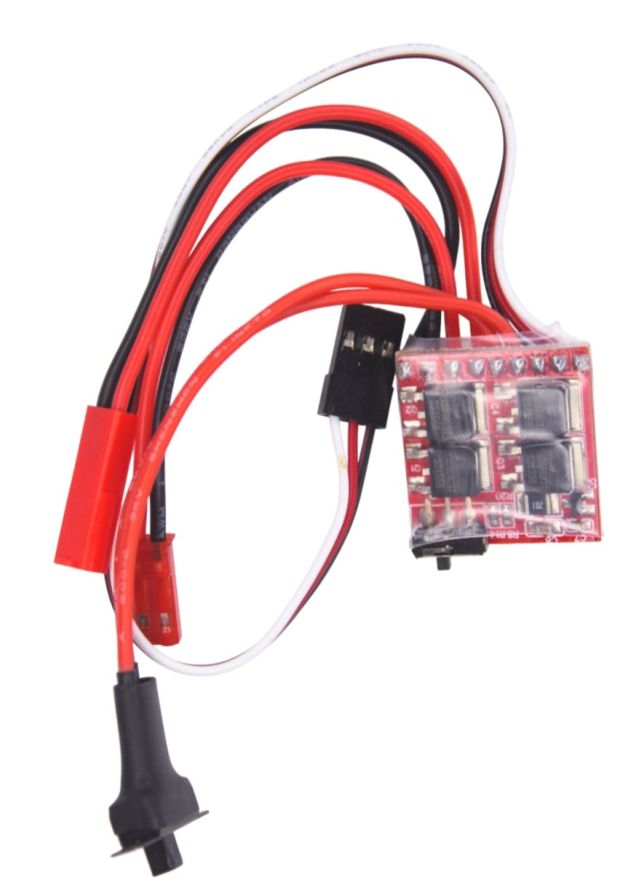

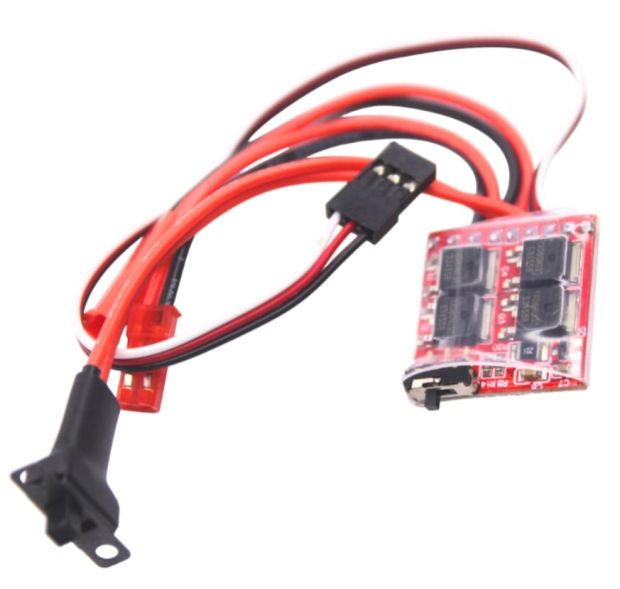

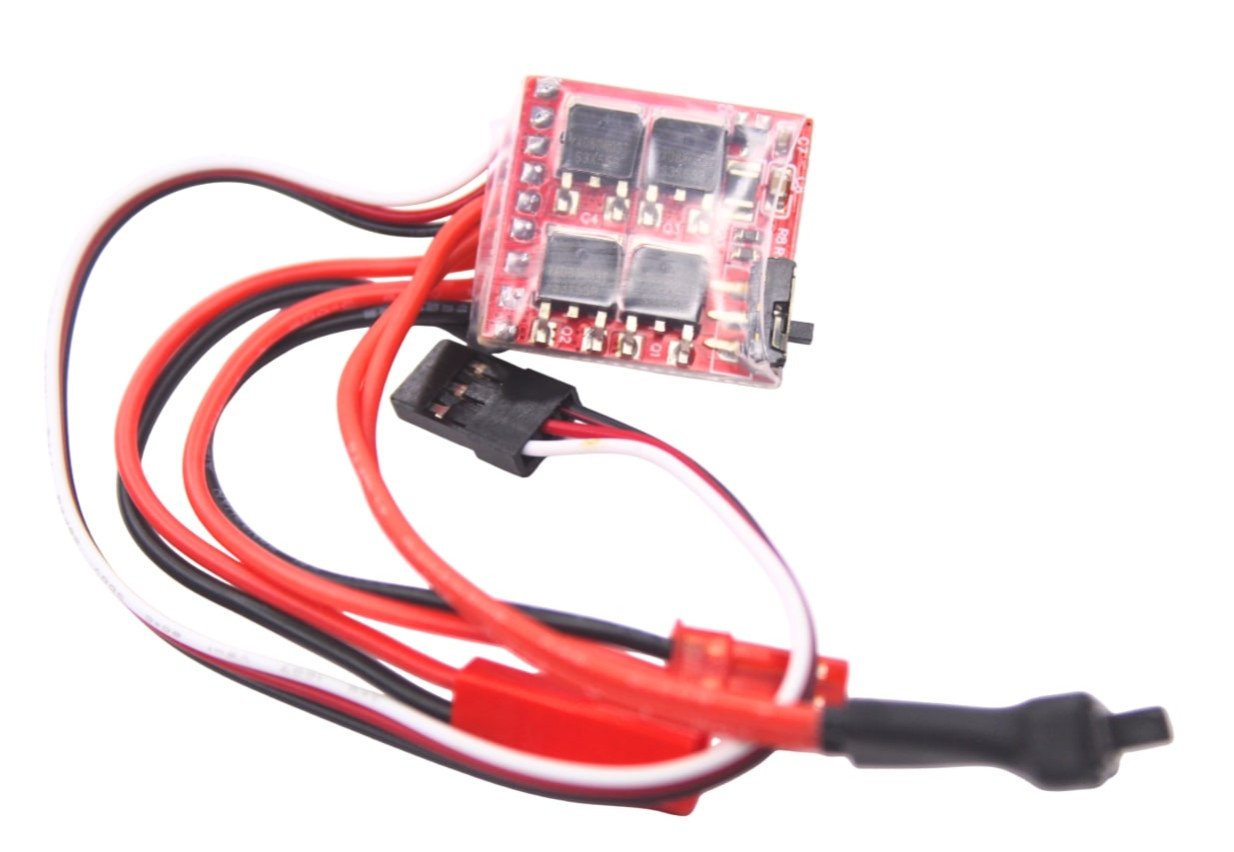

This 20A ESC (Electronic Speed Controller) is a high-performance, low-cost controller designed to drive brushless DC (BLDC) motors used in quadcopters, drones, airplanes, and robotics projects. With its compact size, fast response, and reliable MOSFET switching, it ensures smooth motor operation and efficient power management.

The ESC supports both PWM input and one-shot protocols, and can be programmed via BLHeli or SimonK firmware (based on version). It's capable of handling up to 20A continuous current, with excellent thermal performance and overload protection.

Compatible with 2S–3S LiPo batteries, it is ideal for small to mid-size multirotors, offering great torque response, braking, and throttle control.

Key Features:

• Rated Current: 20A continuous, 25–30A burst

• Battery Compatibility: 2S–3S LiPo (7.4V–11.1V)

• Motor Support: 3-phase brushless DC motors

• Firmware: SimonK / BLHeli (depends on variant)

• Input Signal: PWM (1ms to 2ms standard)

• BEC Output: Optional – typically 5V 1A (check variant)

• Low-voltage cutoff & overheat protection

• Fast response and high reliability

Technical Specifications:

How to Use:

1. Connect the three motor wires to the ESC output

2. Connect battery (LiPo 2S/3S) to the ESC input (usually red/black)

3. Connect the signal wire (servo-type) to your flight controller or Arduino PWM pin

4. Arm and calibrate ESC (via transmitter or code) before operation

5. Mount securely and keep airflow over ESC for cooling

Applications:

• Quadcopters and hexacopters

• RC airplanes and boats

• BLDC motor control for robotics

• Arduino-based motor speed projects

• FPV drones and DIY flying crafts

Package Includes:

• 1 × 20A Brushless ESC
