Detailed Description:

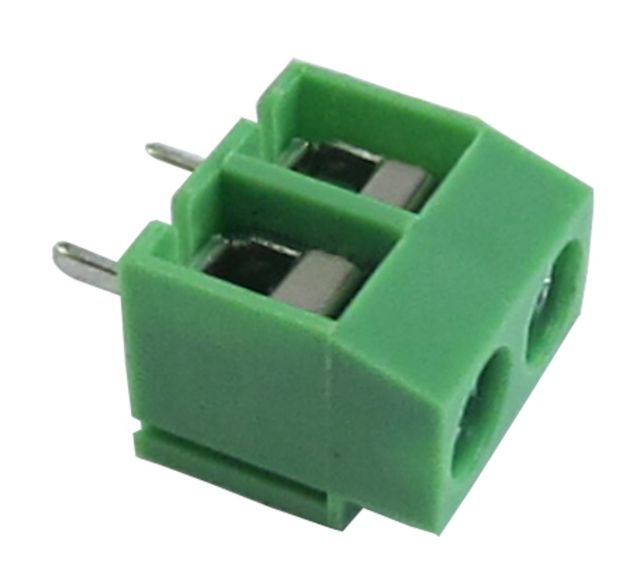

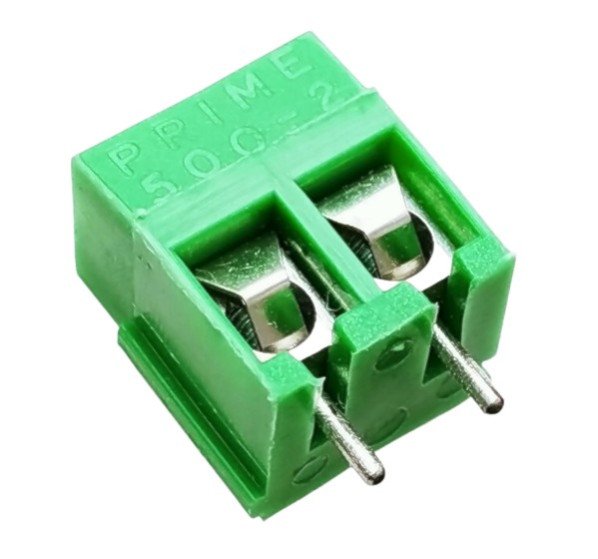

The 2-Pin Screw Terminal Block (5.08mm pitch) is a compact and secure wire-to-board connector used for making detachable electrical connections on PCBs. It is ideal for connecting power lines, motor wires, sensor inputs, or signal wires in DIY electronics, robotics, automation, and industrial control systems.

Designed to fit standard 0.1-inch (2.54mm) grid PCBs with wider 5.08mm pitch spacing, this terminal block features screw-secured clamps that ensure reliable and strong connections without soldering wires directly.

It supports solid and stranded wires, typically in the range of 18–26 AWG, and offers a quick and reusable way to attach/disconnect circuits during prototyping or maintenance.

Key Features:

• 2-pin screw terminal block

• Pitch: 5.08mm (0.2 inch) standard spacing

• Mounting Type: Through-hole PCB mount

• Wire Compatibility: 18–26 AWG solid or stranded

• Secure screw clamp terminals

• Rated Voltage: Up to 250V

• Rated Current: Up to 10A (typical)

• Reusable and reliable wire connection

• Durable plastic housing with corrosion-resistant screws

Technical Specifications:

How to Use:

1. Solder the terminal block onto the PCB holes

2. Strip the wire ends (5–7mm)

3. Insert the stripped wire into the terminal hole

4. Tighten the screw to clamp the wire securely

5. Connect/disconnect wires without desoldering

Applications:

• Arduino, Raspberry Pi, and sensor projects

• Power supply and DC wiring

• Motor and relay connections

• Home automation and IoT modules

• DIY electronics and prototyping boards

• Industrial control panels and terminal boards

Package Includes:

• 1 × 2-Pin Screw Terminal Block – 5.08mm Pitch
