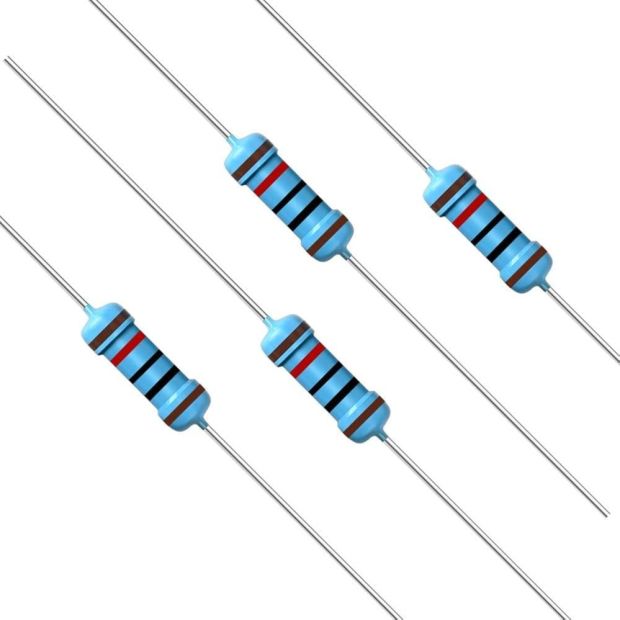

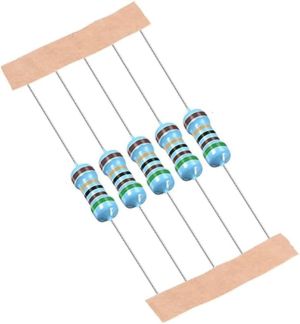

A 1kΩ resistor (1,000 ohms) is one of the most commonly used resistors in electronic circuits. It belongs to the E12 series of standard resistor values, which means it's readily available and suitable for a wide range of applications. Below is an overview of the 1kΩ resistor, its specifications, and typical uses in electronic designs.

Key Specifications of a 1kΩ Resistor:

1. Resistance Value:

   • A 1kΩ resistor has a resistance of 1,000 ohms. This value is commonly used to limit current, divide voltages, or set biasing conditions in circuits.

2. Power Rating:

   • The power rating indicates how much power the resistor can safely dissipate without overheating. Typical power ratings for 1kΩ resistors are:
     • 1/4W (0.25W) – Common for general-purpose applications.
     • 1/2W (0.5W) – Suitable for higher power applications.
     • 1W or higher for specialized needs, though less common for 1kΩ resistors.
   • Ensure that the resistor’s power rating matches the expected power dissipation in your circuit. Power dissipation is calculated using the formula: P=I2×RP = I^2 imes R where II is the current through the resistor, and RR is the resistance (1kΩ in this case).

3. Tolerance:

   • The tolerance of a resistor indicates how much the actual resistance can vary from the specified value. Common tolerance values include:
     • ±1% – Standard for precision circuits.
     • ±5% – Common for less critical applications.
   • The 1kΩ resistor typically comes in these tolerances, but ±1% is often preferred for more accurate circuits.

4. Temperature Coefficient:

   • The temperature coefficient of a resistor tells you how much the resistance will change with temperature. For most general-purpose resistors, the coefficient is around ±100ppm/°C, meaning the resistance will change by 0.01% for every 1°C change in temperature.

Common Applications of a 1kΩ Resistor:

1. Current Limiting:

   • One of the most common uses for a 1kΩ resistor is to limit current in various types of circuits. For example, it can be used to limit the current flowing through an LED or other low-power components. In an LED circuit, the resistor prevents excessive current from damaging the LED by controlling the amount of current that flows through it.

   • Example: For a 5V power supply and an LED with a forward voltage drop of 2V and a desired current of 5mA, you can use a 1kΩ resistor:

     R=Vsupply−VLEDILED=5V−2V0.005A=600ΩR = rac{V_{supply} - V_{LED}}{I_{LED}} = rac{5V - 2V}{0.005A} = 600Ω

     While the calculated value is 600Ω, you might use a 1kΩ resistor to limit the current further and ensure the LED operates within safe limits.

2. Voltage Dividers:

   • A 1kΩ resistor is frequently used in voltage divider circuits. These are simple circuits made with two resistors that divide the input voltage into smaller portions.

   • Example: If you need to create a voltage divider to reduce a 5V input to 2.5V, you can use two 1kΩ resistors in series:

     Vout=Vin×R2R1+R2V_{out} = V_{in} imes rac{R_2}{R_1 + R_2}

     If both resistors are equal (1kΩ each), the output voltage will be half the input, i.e., 2.5V.

3. Biasing Transistors:

   • 1kΩ resistors are often used to bias transistors in amplifier circuits. Biasing ensures that the transistor operates in its active region for amplification. The 1kΩ resistor is used to set the base current or collector current, depending on the configuration.

4. Pull-up and Pull-down Resistors:

   • In digital circuits, 1kΩ resistors are commonly used as pull-up or pull-down resistors. They ensure that a logic input is either pulled to a high or low state when no active signal is driving it. The resistor provides a defined logic level when switches or buttons are used.

   • For instance, in a microcontroller circuit, a 1kΩ pull-up resistor might be used to ensure that an input pin reads HIGH when a button is not pressed, and LOW when the button is pressed.

5. Feedback Networks in Operational Amplifiers (Op-Amps):

   • 1kΩ resistors are often used in the feedback loop of op-amp circuits to set the gain of the amplifier. The value of the feedback resistor determines how much amplification the op-amp provides.

   • In a non-inverting amplifier configuration, the gain AA of the op-amp is set by the ratio of the feedback resistor to the input resistor. For example, using a 1kΩ resistor in the feedback loop can set a specific gain.

6. Filtering and Signal Conditioning:

   • A 1kΩ resistor can be used in RC (Resistor-Capacitor) filter circuits. It can work with capacitors to form low-pass, high-pass, or band-pass filters to condition signals in analog circuits. This is useful in audio processing, signal smoothing, and noise reduction applications.

7. Impedance Matching:

   • In audio and communication circuits, 1kΩ resistors can be used for impedance matching, ensuring maximum power transfer between components like microphones, speakers, or communication systems.

8. Pulse Shaping and Timing Circuits:

   • 1kΩ resistors can be used in timing circuits, such as in RC timing circuits or pulse shaping circuits. They help determine the charge/discharge rate of capacitors, controlling timing or the duration of pulses in the circuit.

Example Circuit: Voltage Divider with Two 1kΩ Resistors

In a voltage divider circuit, if you want to reduce a 12V input to 6V, you can use two 1kΩ resistors in series:

• R1 = 1kΩ
• R2 = 1kΩ
• V_in = 12V

The output voltage VoutV_{out} is given by the formula:

Vout=Vin×R2R1+R2V_{out} = V_{in} imes rac{R_2}{R_1 + R_2} Vout=12V×1kΩ1kΩ+1kΩ=12V×12=6VV_{out} = 12V imes rac{1kΩ}{1kΩ + 1kΩ} = 12V imes rac{1}{2} = 6V

So, V_out will be 6V, which is half of the input voltage.

Advantages of Using a 1kΩ Resistor:

1. Availability:

   • The 1kΩ resistor is a standard value and is widely available in various power ratings and tolerances. It is one of the most common resistors used in electronic circuits.

2. Versatility:

   • The 1kΩ resistor is versatile and can be used in a variety of circuits, including voltage dividers, current limiting, filtering, and biasing circuits.

3. Cost-Effective:

   • The 1kΩ resistor is inexpensive, making it a popular choice for both hobbyists and professionals.

4. Wide Range of Applications:

   • From simple voltage dividers to complex biasing circuits, the 1kΩ resistor is used in many types of electronic circuits, making it a staple in almost every electronics toolbox.

Considerations When Using a 1kΩ Resistor:

1. Power Dissipation:

   • Ensure that the power rating of the resistor is appropriate for your application. For instance, if you're using a 1kΩ resistor in a high-current circuit, it may need a higher power rating, such as 1/2W or 1W.

2. Tolerance:

   • If precision is important for your circuit, ensure that the 1kΩ resistor you select has an appropriate tolerance (e.g., ±1% or ±5%). For high-precision circuits, a ±1% tolerance is typically used.

3. Current Limiting:

   • When using a 1kΩ resistor for current limiting, be sure to calculate the required value based on the supply voltage and the desired current to avoid excessive current that could damage the components.

Conclusion:

The 1kΩ resistor is a widely used, versatile component in many types of electronic circuits. It can serve in various applications, such as voltage dividers, current limiting, biasing transistors, pull-up/pull-down resistors, and more. It is readily available, inexpensive, and comes in different tolerances and power ratings, making it suitable for a wide range of circuit designs, from basic hobbyist projects to professional applications. When selecting a 1kΩ resistor, it's important to consider the power rating, tolerance, and temperature coefficient to ensure it fits the requirements of your specific circuit.
