16 MHz Crystal Oscillator – High Stability Quartz Crystal
A 16 MHz crystal is a passive electronic component that provides a precise 16 million cycles per second (16 MHz) frequency reference. It’s commonly used with microcontrollers (e.g., ATmega328P in Arduino Uno) and other digital circuits for clock generation. High-quality 16 MHz quartz crystal oscillator for stable clock generation in Arduino boards, ATmega microcontrollers, and embedded systems.
₹ 8
₹29
29
| : | |
| Made In : | India |
Detailed Description:
The 16 MHz crystal oscillator is a high-precision passive timing component used to provide a stable clock signal to microcontrollers and digital circuits. It is widely used in Arduino Uno, Nano, Pro Mini, and other AVR-based boards using the ATmega328P or similar chips.

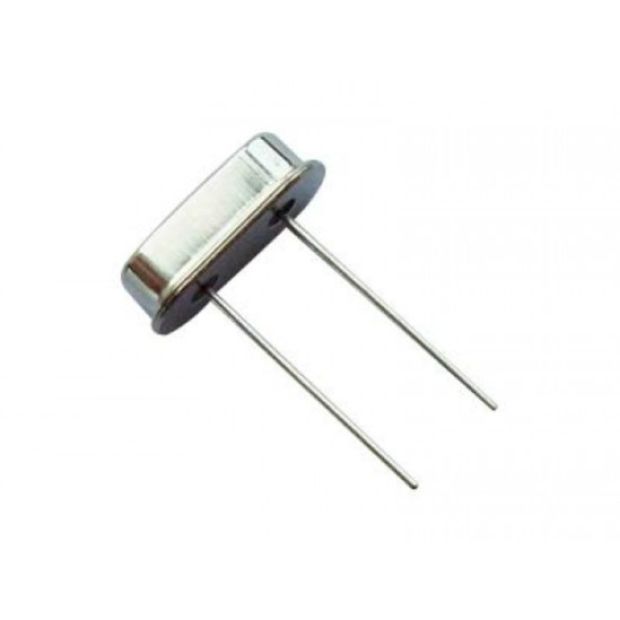

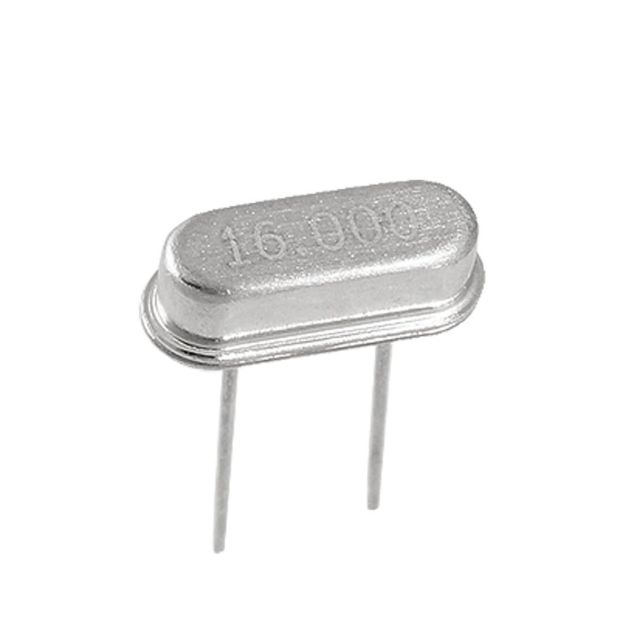

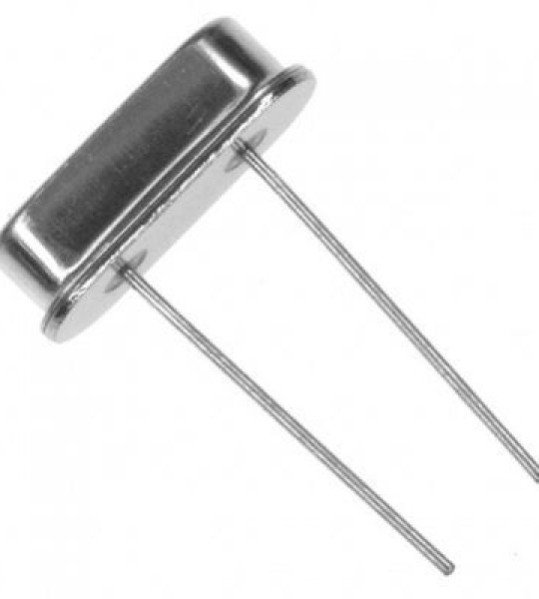

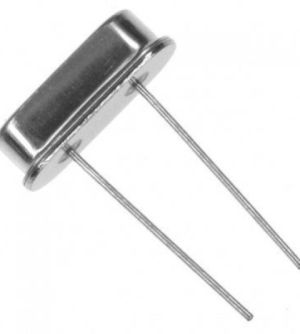

This crystal has a nominal frequency of 16.000 MHz and comes in a standard 2-pin metal can package (HC-49S). It offers tight frequency tolerance, low temperature drift, and excellent aging characteristics, making it ideal for time-sensitive applications and reliable clock sources.
Key Features:
-
Stable 16.000 MHz frequency
-
Standard HC-49S 2-pin through-hole package
-
Compatible with Arduino Uno, Nano, Pro Mini, ATmega328P
-
High precision and low frequency deviation
-
Wide operating temperature range
-
Long-term frequency stability
-
Low cost and compact design
-
Requires load capacitors for oscillator circuits (typically 22pF)
Technical Specifications:
| Parameter | Specification |
|---|---|
| Frequency | 16 MHz |
| Tolerance | ±20 ppm (typical) |
| Load Capacitance | 18–22 pF |
| Package Type | HC-49S (through-hole) |
| Operating Temperature | -20°C to +70°C |
| Equivalent Series Resistance (ESR) | <50 Ω |
| Aging | <±5 ppm/year (typical) |
| Applications | Microcontroller clock, digital timing |
How to Use:
-
Place the 16 MHz crystal across XTAL1 and XTAL2 pins of a microcontroller (e.g., ATmega328P)
-
Add two 22pF ceramic capacitors from each crystal pin to GND
-
Supply power to the microcontroller; it will now operate with a precise external clock
-
Ensure correct fuse settings (in AVR) for external crystal mode
Applications:
-
Arduino Uno, Nano, Pro Mini boards
-
ATmega328P and ATmega2560 microcontrollers
-
Timers and digital clocks
-
Serial communication synchronization
-
AVR, PIC, STM32-based embedded projects
-
General-purpose digital circuit timing
Package Includes:
-
1 × 16 MHz Crystal Oscillator – HC-49S Package
