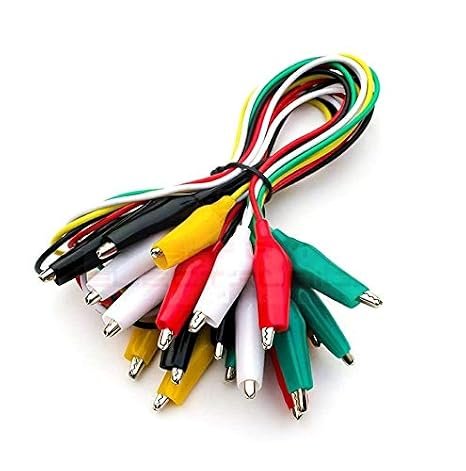

The 10pcs Double-Ended Crocodile Alligator Clip Test Leads Set is a fundamental utility kit for any electronics workbench, educational lab, or prototyping environment. Featuring 10 individual test cables in 5 distinct high-visibility colors (2x Red, 2x Black, 2x Yellow, 2x Green, 2x White), this set makes path identification simple during complex multi-line circuit testing.

Each jumper cable measures 50 cm in length and is fabricated from flexible multi-strand copper-clad wire wrapped in soft PVC insulation. On both ends, heavy-duty nickel-plated steel spring clamps deliver a firm electrical contact on battery posts, component terminals, breadboard pins, and multimeter probes. Slide-on color-matched PVC insulation boots shield the clips from accidental metallic contact, preventing short circuits during live testing.

Key Features and Benefits

• 5 Distinct Color-Coded Pairs: Includes Red, Black, Yellow, Green, and White leads for organized, color-coded diagnostic tracking.

• Double-Ended Clip Design: Pre-terminated with spring-loaded alligator clips on both ends for rapid, tool-free temporary connections.

• Soft & Flexible PVC Insulation: Cable jacket and clip boots remain pliable during cold weather and frequent flexing.

• Short-Circuit Protective Boots: Insulated sleeves extend over the clip base to prevent short circuits against neighboring leads.

• Multi-Strand Copper Core: Delivers low internal electrical resistance for reliable signal transfer and power supply jump-starting up to 3A continuous.

Technical Specifications

Usage & Connection Guide

1. Color-Coding Best Practices:

2. Operating Recommendations:

1. Low-Voltage DC Use: Intended for low-voltage electronics prototyping (under 60V DC). Do not use for AC mains power connections.

2. Current Limits: Recommended for currents up to 2A - 3A max. For high-power motor drivers or heavy battery loads, select thicker gauge (18 AWG or larger) dedicated test cables.

Applications

• Breadboard & Circuit Prototyping: Connecting microcontrollers (Arduino, ESP32, Raspberry Pi) to off-board sensors, switches, and LEDs.

• Diagnostic Multimeter Testing: Hands-free attachment of meter probes to circuit test points and components.

• Low-Power Battery Testing: Connecting AA, 9V, or 18650 lithium cells to load resistors or chargers.

• STEM & Educational Science Labs: Fast assembly of basic electric circuits in classroom settings.

Package Includes

• 10 x Double-Ended Crocodile Clip Test Leads (2x Red, 2x Black, 2x Yellow, 2x Green, 2x White)
