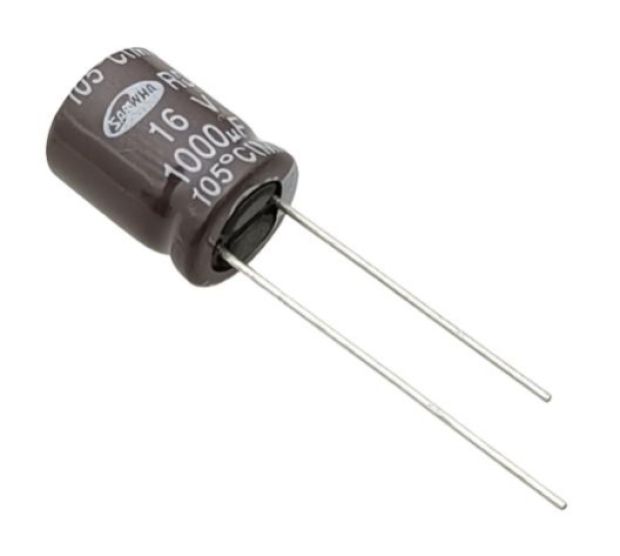

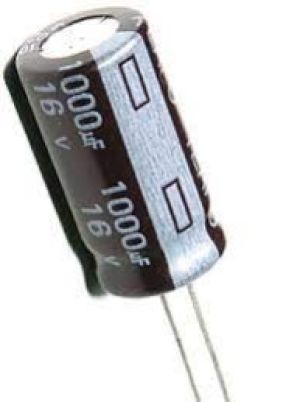

A 1000µF capacitor refers to a capacitor with a capacitance value of 1000 microfarads (µF). It is a relatively common and versatile component used in various electronic circuits, particularly in power supply filtering, decoupling, and energy storage applications. Let's explore the details, typical uses, and key considerations for this type of capacitor.

Key Specifications of a 1000µF Capacitor:

1. Capacitance (1000µF):

   • The capacitance value of 1000 microfarads (µF) represents how much charge the capacitor can store at a given voltage. A 1000µF capacitor can store a substantial amount of charge compared to smaller capacitors, which makes it useful in applications where large amounts of energy need to be stored temporarily.

2. Voltage Rating:

   • The voltage rating specifies the maximum voltage the capacitor can safely handle. A typical 1000µF capacitor might be rated for voltages such as 6.3V, 10V, 25V, 35V, or 50V depending on the intended application.
   • It is crucial to choose a capacitor with a voltage rating higher than the voltage it will experience in the circuit to avoid damage or failure.

3. Type:

   • The most common type of 1000µF capacitor is an electrolytic capacitor, which uses an electrolyte to achieve high capacitance in a compact form. These capacitors are typically polarized, meaning they have a positive and negative lead, and the correct polarity must be observed during installation to avoid failure or damage.

4. Tolerance:

   • Tolerance refers to the permissible variation in capacitance value from the nominal value. For instance, a ±20% tolerance means that the actual capacitance can range from 800µF to 1200µF. This is typical for electrolytic capacitors.

5. ESR (Equivalent Series Resistance):

   • ESR is the internal resistance of the capacitor. Low ESR is important in high-current applications, such as power supplies, where the capacitor needs to efficiently handle large currents without excessive heat buildup.

6. Size:

   • A 1000µF capacitor is typically larger than smaller capacitors due to its higher capacitance. The physical size varies depending on the voltage rating and the manufacturer.

Common Applications of a 1000µF Capacitor:

1. Power Supply Filtering:

   • 1000µF capacitors are often used in power supply circuits to filter out voltage ripple after AC-to-DC conversion. After the rectifier in a power supply converts AC to DC, the capacitor smooths out the fluctuating voltage to provide a stable DC output.

2. Decoupling and Bypassing:

   • In digital or analog circuits, capacitors are used for decoupling (or bypassing) to remove noise and smooth voltage fluctuations. A 1000µF capacitor may be used to stabilize power supplies and reduce noise in sensitive components like microcontrollers, op-amps, and sensors.

3. Energy Storage:

   • Capacitors like the 1000µF are used to store energy and release it when needed. In some circuits, capacitors act as a temporary energy reservoir, which helps in stabilizing voltage during power surges or when powering larger loads.

4. Motor Start Capacitors:

   • In certain motor-driven applications, capacitors are used to provide a burst of energy to start the motor. While 1000µF capacitors might not be used for large industrial motors, they can be found in smaller systems where high capacitance is required.

5. Signal Filtering:

   • In audio systems or other analog circuits, capacitors of this size are used to filter high-frequency noise or unwanted signals from a power supply or signal source.

6. Timing Circuits:

   • In RC circuits, a 1000µF capacitor is used in combination with a resistor to create timing applications, such as generating time delays, pulse width modulation, or oscillations in circuits like timers or pulse circuits.

Example Wiring Diagram:

For a filtering application in a power supply:

• Input DC Voltage (after rectifier) → 1000µF Capacitor → Load (e.g., LED, motor, or electronic device).

This arrangement smooths the output voltage by removing fluctuations (ripples) and providing a more stable DC voltage.

Advantages of Using a 1000µF Capacitor:

1. High Energy Storage:

   • With 1000µF capacitance, the capacitor can store significant charge, making it useful in power applications where energy storage and smoothing are required.

2. Effective Noise Reduction:

   • It can effectively reduce voltage ripple and noise in power supply circuits, ensuring cleaner DC voltage for other components.

3. Affordable and Readily Available:

   • Capacitors with this value are inexpensive and widely available, making them an easy choice for many electronics projects.

4. Good for Moderate Power Applications:

   • Suitable for circuits requiring moderate power filtering or energy storage, such as small power supplies, audio equipment, or LED drivers.

Considerations When Using a 1000µF Capacitor:

1. Polarity:

   • Electrolytic capacitors are polarized, so it's crucial to connect them correctly, observing the positive (+) and negative (-) leads. Reversing the polarity can cause the capacitor to fail, potentially leaking or even exploding.

2. Voltage Rating:

   • Always choose a capacitor with a voltage rating higher than the circuit voltage to avoid failure. For instance, if the circuit operates at 12V, a 16V or 25V rated capacitor would be a safe choice.

3. Temperature Sensitivity:

   • Capacitors degrade over time, especially under high-temperature conditions. If the circuit will be exposed to high temperatures, choose capacitors rated for higher temperatures.

4. Size and ESR:

   • The physical size and ESR are important factors in power supply and energy storage applications. Higher ESR can lead to poor performance, excessive heat generation, and reduced lifespan.

Conclusion:

The 1000µF capacitor is an essential component in a variety of electronic circuits, particularly those involved in power supply filtering, energy storage, decoupling, and signal conditioning. It is commonly used in electrolytic form and requires careful attention to voltage rating, polarity, and tolerance to ensure proper operation and longevity in the circuit. Whether you're building a power supply, smoothing signals, or working with timing circuits, the 1000µF capacitor provides the necessary capacitance for stable performance.
